Taper Neck Corner Radius

4TCR 040 002 3001

Taper Neck Corner Radius
COGO · Milling Tools > Carbide End Mills > Taper
Spec: 4TCR 040 002 3001 / B HARD · Unit EA
List price (excl. VAT)₩64,400
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Log in

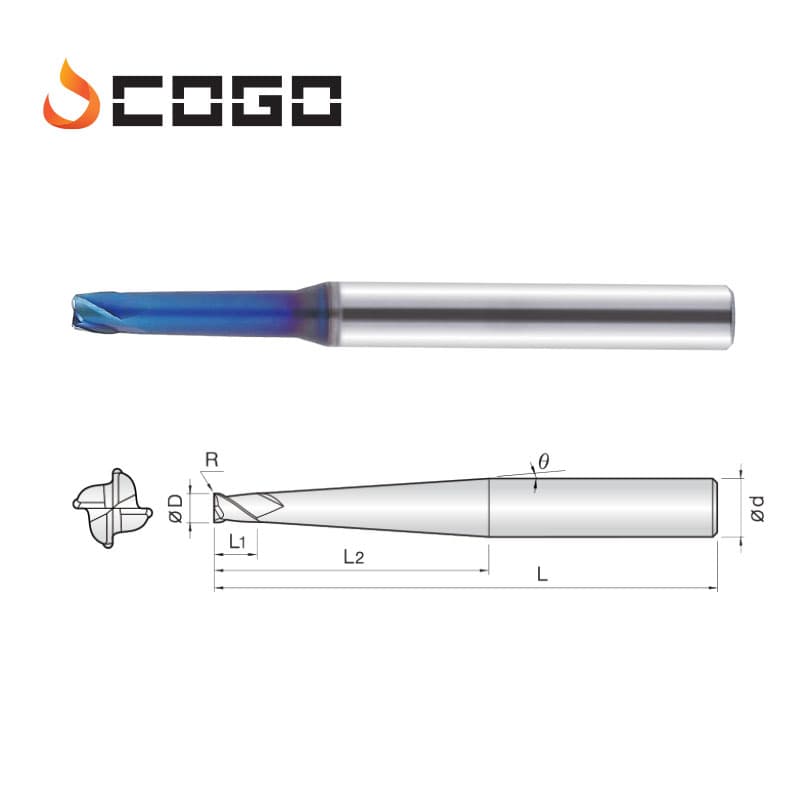

Catalog specifications
4TCR 040 002 3001
Diameter
Cutting-tip diameter (R = corner rounding)
Ø4.0 × R0.2
Angle (θ)
Taper angle of the cutting part
1 °
Length of cut (l1)
Length of the actual cutting edge
4 mm
Effective length (l2)
Usable reach (necked length)
30 mm
Overall length (L)
Total length of the tool
70 mm
Shank dia (φd)
Diameter of the shank held by the machine
6 mm
Substitute item (from ERP)
4JJTC 040 0023 001 · 테이퍼 넥 코너 레디우스
When out of stock, the substitute item's stock can be used.
Items in the same group (click to switch)
CodeNameSpecList priceStock
4TCR 010 001 0601Taper Neck Corner Radius4TCR 010 001 0601 / B HARD₩37,920Inquiry
4TCR 010 001 1001Taper Neck Corner Radius4TCR 010 001 1001 / B HARD₩37,920Inquiry
4TCR 010 001 1501Taper Neck Corner Radius4TCR 010 001 1501 / B HARD₩37,920Inquiry
4TCR 010 001 2001Taper Neck Corner Radius4TCR 010 001 2001 / B HARD₩42,570Inquiry
4TCR 010 001 2501Taper Neck Corner Radius4TCR 010 001 2501 / B HARD₩42,570Inquiry
4TCR 010 001 3001Taper Neck Corner Radius4TCR 010 001 3001 / B HARD₩47,420Inquiry
4TCR 010 001 3501Taper Neck Corner Radius4TCR 010 001 3501 / B HARD₩50,690Inquiry
4TCR 010 002 0601Taper Neck Corner Radius4TCR 010 002 0601 / B HARD₩37,920Inquiry
4TCR 010 002 1001Taper Neck Corner Radius4TCR 010 002 1001 / B HARD₩37,920Inquiry
4TCR 010 002 1501Taper Neck Corner Radius4TCR 010 002 1501 / B HARD₩37,920Inquiry
4TCR 010 002 2001Taper Neck Corner Radius4TCR 010 002 2001 / B HARD₩42,570Inquiry
4TCR 010 002 2501Taper Neck Corner Radius4TCR 010 002 2501 / B HARD₩42,570Inquiry
4TCR 010 002 3001Taper Neck Corner Radius4TCR 010 002 3001 / B HARD₩47,420Inquiry
4TCR 010 002 3501Taper Neck Corner Radius4TCR 010 002 3501 / B HARD₩50,690Inquiry
4TCR 010 003 1001Taper Neck Corner Radius4TCR 010 003 1001 / B HARD₩37,920Inquiry
4TCR 010 003 1501Taper Neck Corner Radius4TCR 010 003 1501 / B HARD₩37,920Inquiry
4TCR 010 003 2001Taper Neck Corner Radius4TCR 010 003 2001 / B HARD₩42,570Inquiry
4TCR 010 003 2501Taper Neck Corner Radius4TCR 010 003 2501 / B HARD₩42,570Inquiry
4TCR 015 002 1001Taper Neck Corner Radius4TCR 015 002 1001 / B HARD₩37,920Inquiry
4TCR 015 002 1501Taper Neck Corner Radius4TCR 015 002 1501 / B HARD₩37,920Inquiry
4TCR 015 002 2001Taper Neck Corner Radius4TCR 015 002 2001 / B HARD₩42,570Inquiry
4TCR 015 002 2501Taper Neck Corner Radius4TCR 015 002 2501 / B HARD₩42,570Inquiry
4TCR 015 002 3001Taper Neck Corner Radius4TCR 015 002 3001 / B HARD₩47,420Inquiry
4TCR 015 002 3501Taper Neck Corner Radius4TCR 015 002 3501 / B HARD₩50,690Inquiry
4TCR 015 003 1501Taper Neck Corner Radius4TCR 015 003 1501 / B HARD₩37,920Inquiry
4TCR 015 003 2001Taper Neck Corner Radius4TCR 015 003 2001 / B HARD₩42,570Inquiry
4TCR 015 003 2501Taper Neck Corner Radius4TCR 015 003 2501 / B HARD₩42,570Inquiry
4TCR 015 005 1001Taper Neck Corner Radius4TCR 015 005 1001 / B HARD₩37,920Inquiry
4TCR 015 005 1501Taper Neck Corner Radius4TCR 015 005 1501 / B HARD₩37,920Inquiry
4TCR 015 005 2001Taper Neck Corner Radius4TCR 015 005 2001 / B HARD₩42,570Inquiry
4TCR 015 005 2501Taper Neck Corner Radius4TCR 015 005 2501 / B HARD₩42,570Inquiry
4TCR 015 005 3001Taper Neck Corner Radius4TCR 015 005 3001 / B HARD₩47,420Inquiry
4TCR 015 005 3501Taper Neck Corner Radius4TCR 015 005 3501 / B HARD₩50,690Inquiry
4TCR 020 002 1201Taper Neck Corner Radius4TCR 020 002 1201 / B HARD₩37,920Inquiry
4TCR 020 002 1601Taper Neck Corner Radius4TCR 020 002 1601 / B HARD₩37,920Inquiry
4TCR 020 002 2001Taper Neck Corner Radius4TCR 020 002 2001 / B HARD₩42,570Inquiry
4TCR 020 002 2501Taper Neck Corner Radius4TCR 020 002 2501 / B HARD₩42,570Inquiry
4TCR 020 002 3001Taper Neck Corner Radius4TCR 020 002 3001 / B HARD₩47,420Inquiry
4TCR 020 002 3501Taper Neck Corner Radius4TCR 020 002 3501 / B HARD₩50,690Inquiry
4TCR 020 002 4001Taper Neck Corner Radius4TCR 020 002 4001 / B HARD₩53,590Inquiry
