4SCU 080 003 160
High Speed Radius Cutter
List price (excl. VAT)₩77,900
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Catalog specifications
4SCU 080 003 160

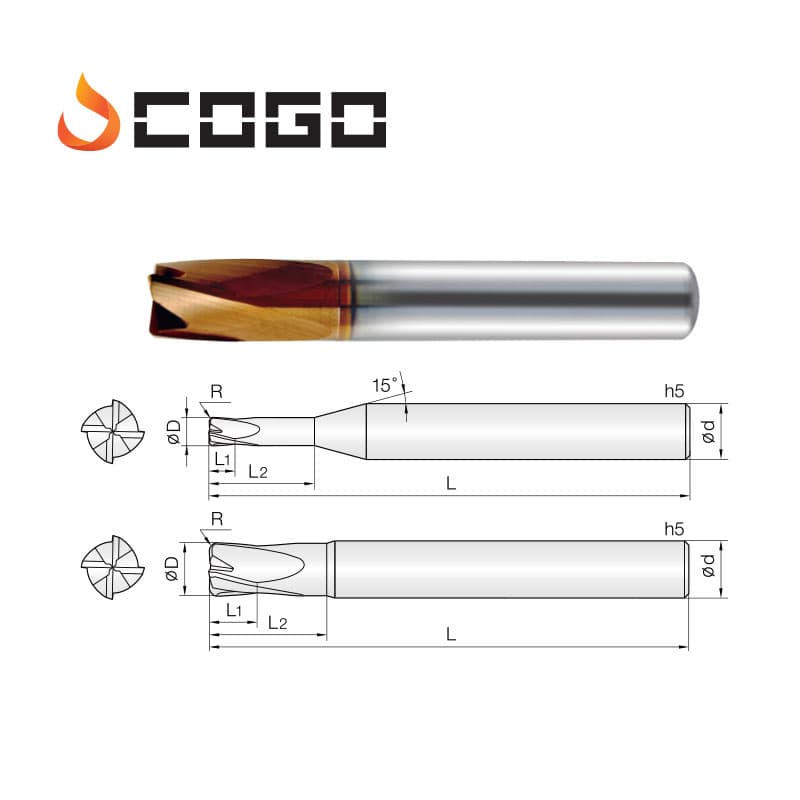

| Diameter Cutting-tip diameter (R = corner rounding) | Ø8.0 × R0.3 |
|---|---|
| Length of cut (l1) Length of the actual cutting edge | 8 mm |
| Effective length (l2) Usable reach (necked length) | 16 mm |
| Overall length (L) Total length of the tool | 60 mm |
| Shank dia (φd) Diameter of the shank held by the machine | 8 mm |
Substitute item (from ERP)
4RCU 080 003 160 · 고이송 코너 레디우스 커터When out of stock, the substitute item's stock can be used.
Items in the same group (click to switch)
| Code | Name | Spec | List price | Stock |
|---|---|---|---|---|
| 4SCU 010 002 025 | High Speed Radius Cutter | 4SCU 010 002 025 / K SPEED | ₩32,310 | Inquiry |
| 4SCU 015 005 040 | High Speed Radius Cutter | 4SCU 015 005 040 / K SPEED | ₩32,310 | Inquiry |
| 4SCU 020 005 060 | High Speed Radius Cutter | 4SCU 020 005 060 / K SPEED | ₩44,250 | Inquiry |
| 4SCU 030 005 080 | High Speed Radius Cutter | 4SCU 030 005 080 / K SPEED | ₩44,250 | Inquiry |
| 4SCU 040 005 120 | High Speed Radius Cutter | 4SCU 040 005 120 / K SPEED | ₩44,250 | Inquiry |
| 4SCU 040 005 160 | High Speed Radius Cutter | 4SCU 040 005 160 / K SPEED | ₩44,250 | Inquiry |
| 4SCU 040 005 200 | High Speed Radius Cutter | 4SCU 040 005 200 / K SPEED | Ask for price | Inquiry |
| 4SCU 040 010 120 | High Speed Radius Cutter | 4SCU 040 010 120 / K SPEED | ₩44,250 | Inquiry |
| 4SCU 040 010 160 | High Speed Radius Cutter | 4SCU 040 010 160 / K SPEED | ₩44,250 | Inquiry |
| 4SCU 050 005 150 | High Speed Radius Cutter | 4SCU 050 005 150 / K SPEED | ₩44,250 | Inquiry |
| 4SCU 050 010 150 | High Speed Radius Cutter | 4SCU 050 010 150 / K SPEED | ₩44,250 | Inquiry |
| 4SCU 060 003 150 | High Speed Radius Cutter | 4SCU 060 003 150 / K SPEED | ₩44,250 | Inquiry |
| 4SCU 060 005 150 | High Speed Radius Cutter | 4SCU 060 005 150 / K SPEED | ₩44,250 | Inquiry |
| 4SCU 060 010 150 | High Speed Radius Cutter | 4SCU 060 010 150 / K SPEED | ₩44,250 | Inquiry |
| 4SCU 060 015 150 | High Speed Radius Cutter | 4SCU 060 015 150 / K SPEED | ₩44,250 | Inquiry |
| 4SCU 060 015 150(S) | High Speed Radius Cutter | 4SCU 060 015 150(S) / K SPEED | ₩20,680 | Inquiry |
| 4SCU 080 003 160 | High Speed Radius Cutter | 4SCU 080 003 160 / K SPEED | ₩77,900 | Inquiry |
| 4SCU 080 005 160 | High Speed Radius Cutter | 4SCU 080 005 160 / K SPEED | ₩77,900 | Inquiry |
| 4SCU 080 005 200 | High Speed Radius Cutter | 4SCU 080 005 200 / K SPEED | ₩87,880 | Inquiry |
| 4SCU 080 005 300 | High Speed Radius Cutter | 4SCU 080 005 300 / K SPEED | ₩112,470 | Inquiry |
| 4SCU 080 010 160 | High Speed Radius Cutter | 4SCU 080 010 160 / K SPEED | ₩77,900 | Inquiry |
| 4SCU 080 010 200 | High Speed Radius Cutter | 4SCU 080 010 200 / K SPEED | ₩87,880 | Inquiry |
| 4SCU 080 010 300 | High Speed Radius Cutter | 4SCU 080 010 300 / K SPEED | ₩112,470 | Inquiry |
| 4SCU 080 020 160 | High Speed Radius Cutter | 4SCU 080 020 160 / K SPEED | ₩77,900 | Inquiry |
| 4SCU 080 020 200 | High Speed Radius Cutter | 4SCU 080 020 200 / K SPEED | ₩87,880 | Inquiry |
| 4SCU 080 020 300 | High Speed Radius Cutter | 4SCU 080 020 300 / K SPEED | ₩112,470 | Inquiry |
| 4SCU 100 003 200 | High Speed Radius Cutter | 4SCU 100 003 200 / K SPEED | ₩120,540 | Inquiry |
| 4SCU 100 005 200 | High Speed Radius Cutter | 4SCU 100 005 200 / K SPEED | ₩120,540 | Inquiry |
| 4SCU 100 005 250 | High Speed Radius Cutter | 4SCU 100 005 250 / K SPEED | ₩134,500 | Inquiry |
| 4SCU 100 005 300 | High Speed Radius Cutter | 4SCU 100 005 300 / K SPEED | ₩169,320 | Inquiry |
| 4SCU 100 010 200 | High Speed Radius Cutter | 4SCU 100 010 200 / K SPEED | ₩120,540 | Inquiry |
| 4SCU 100 010 250 | High Speed Radius Cutter | 4SCU 100 010 250 / K SPEED | ₩134,500 | Inquiry |
| 4SCU 100 010 300 | High Speed Radius Cutter | 4SCU 100 010 300 / K SPEED | ₩169,320 | Inquiry |
| 4SCU 100 020 200 | High Speed Radius Cutter | 4SCU 100 020 200 / K SPEED | ₩120,540 | Inquiry |
| 4SCU 100 020 250 | High Speed Radius Cutter | 4SCU 100 020 250 / K SPEED | ₩134,500 | Inquiry |
| 4SCU 100 020 300 | High Speed Radius Cutter | 4SCU 100 020 300 / K SPEED | ₩169,320 | Inquiry |
| 4SCU 120 005 250 | High Speed Radius Cutter | 4SCU 120 005 250 / K SPEED | ₩155,800 | Inquiry |
| 4SCU 120 005 300 | High Speed Radius Cutter | 4SCU 120 005 300 / K SPEED | ₩181,010 | Inquiry |
| 4SCU 120 005 350 | High Speed Radius Cutter | 4SCU 120 005 350 / K SPEED | ₩216,060 | Inquiry |
| 4SCU 120 010 250 | High Speed Radius Cutter | 4SCU 120 010 250 / K SPEED | ₩155,800 | Inquiry |
