All categories · 4RCR 010 0005 300
Rib Corner Radius

4RCR 010 0005 300

Rib Corner Radius
COGO · Milling Tools > Carbide End Mills > Corner Radius
Spec: 4RCR 010 0005 300 / K SPEED · Unit EA
List price (excl. VAT)₩42,570
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Log in

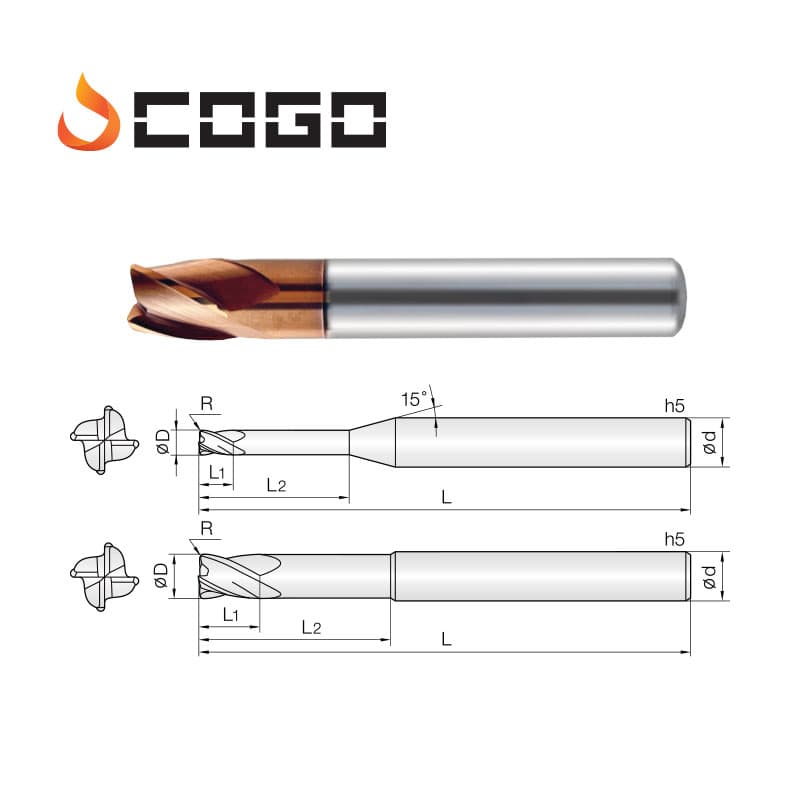

Catalog specifications
4RCR 010 0005 300
Diameter
Cutting-tip diameter (R = corner rounding)
Ø1.0 × R0.05
Length of cut (l1)
Length of the actual cutting edge
1 mm
Effective length (l2)
Usable reach (necked length)
30 mm
Overall length (L)
Total length of the tool
70 mm
Shank dia (φd)
Diameter of the shank held by the machine
4 mm
Items in the same group (click to switch)
CodeNameSpecList priceStock
4RCR 008 0002 020Rib Corner Radius4RCR 008 0002 020 / K SPEED₩33,600Inquiry
4RCR 008 0002 040Rib Corner Radius4RCR 008 0002 040 / K SPEED₩33,600Inquiry
4RCR 008 0002 060Rib Corner Radius4RCR 008 0002 060 / K SPEED₩33,600Inquiry
4RCR 008 0002 080Rib Corner Radius4RCR 008 0002 080 / K SPEED₩33,600Inquiry
4RCR 008 0002 100Rib Corner Radius4RCR 008 0002 100 / K SPEED₩33,600Inquiry
4RCR 008 0002 120Rib Corner Radius4RCR 008 0002 120 / K SPEED₩39,140Inquiry
4RCR 008 0005 020Rib Corner Radius4RCR 008 0005 020 / K SPEED₩33,600Inquiry
4RCR 008 0005 040Rib Corner Radius4RCR 008 0005 040 / K SPEED₩33,600Inquiry
4RCR 008 0005 060Rib Corner Radius4RCR 008 0005 060 / K SPEED₩33,600Inquiry
4RCR 008 0005 080Rib Corner Radius4RCR 008 0005 080 / K SPEED₩33,600Inquiry
4RCR 008 0005 100Rib Corner Radius4RCR 008 0005 100 / K SPEED₩33,600Inquiry
4RCR 008 0005 120Rib Corner Radius4RCR 008 0005 120 / K SPEED₩39,140Inquiry
4RCR 008 001 020Rib Corner Radius4RCR 008 001 020 / K SPEED₩33,600Inquiry
4RCR 008 001 040Rib Corner Radius4RCR 008 001 040 / K SPEED₩33,600Inquiry
4RCR 008 001 060Rib Corner Radius4RCR 008 001 060 / K SPEED₩33,600Inquiry
4RCR 008 001 080Rib Corner Radius4RCR 008 001 080 / K SPEED₩33,600Inquiry
4RCR 008 001 100Rib Corner Radius4RCR 008 001 100 / K SPEED₩33,600Inquiry
4RCR 008 001 120Rib Corner Radius4RCR 008 001 120 / K SPEED₩39,140Inquiry
4RCR 010 0002 040Rib Corner Radius4RCR 010 0002 040 / K SPEED₩31,740Inquiry
4RCR 010 0002 060Rib Corner Radius4RCR 010 0002 060 / K SPEED₩31,740Inquiry
4RCR 010 0002 080Rib Corner Radius4RCR 010 0002 080 / K SPEED₩31,740Inquiry
4RCR 010 0002 100Rib Corner Radius4RCR 010 0002 100 / K SPEED₩33,230Inquiry
4RCR 010 0002 120Rib Corner Radius4RCR 010 0002 120 / K SPEED₩33,230Inquiry
4RCR 010 0002 140Rib Corner Radius4RCR 010 0002 140 / K SPEED₩33,230Inquiry
4RCR 010 0002 160Rib Corner Radius4RCR 010 0002 160 / K SPEED₩33,230Inquiry
4RCR 010 0002 200Rib Corner Radius4RCR 010 0002 200 / K SPEED₩34,470Inquiry
4RCR 010 0002 250Rib Corner Radius4RCR 010 0002 250 / K SPEED₩39,140Inquiry
4RCR 010 0002 300Rib Corner Radius4RCR 010 0002 300 / K SPEED₩42,570Inquiry
4RCR 010 0005 040Rib Corner Radius4RCR 010 0005 040 / K SPEED₩31,740Inquiry
4RCR 010 0005 060Rib Corner Radius4RCR 010 0005 060 / K SPEED₩31,740Inquiry
4RCR 010 0005 080Rib Corner Radius4RCR 010 0005 080 / K SPEED₩31,740Inquiry
4RCR 010 0005 100Rib Corner Radius4RCR 010 0005 100 / K SPEED₩33,230Inquiry
4RCR 010 0005 120Rib Corner Radius4RCR 010 0005 120 / K SPEED₩33,230Inquiry
4RCR 010 0005 140Rib Corner Radius4RCR 010 0005 140 / K SPEED₩33,230Inquiry
4RCR 010 0005 160Rib Corner Radius4RCR 010 0005 160 / K SPEED₩33,230Inquiry
4RCR 010 0005 200Rib Corner Radius4RCR 010 0005 200 / K SPEED₩34,470Inquiry
4RCR 010 0005 250Rib Corner Radius4RCR 010 0005 250 / K SPEED₩39,140Inquiry
4RCR 010 0005 300Rib Corner Radius4RCR 010 0005 300 / K SPEED₩42,570Inquiry
4RCR 010 001 040Rib Corner Radius4RCR 010 001 040 / K SPEED₩31,740Inquiry
4RCR 010 001 060Rib Corner Radius4RCR 010 001 060 / K SPEED₩31,740Inquiry
