All categories · 4NGR 120 035 110

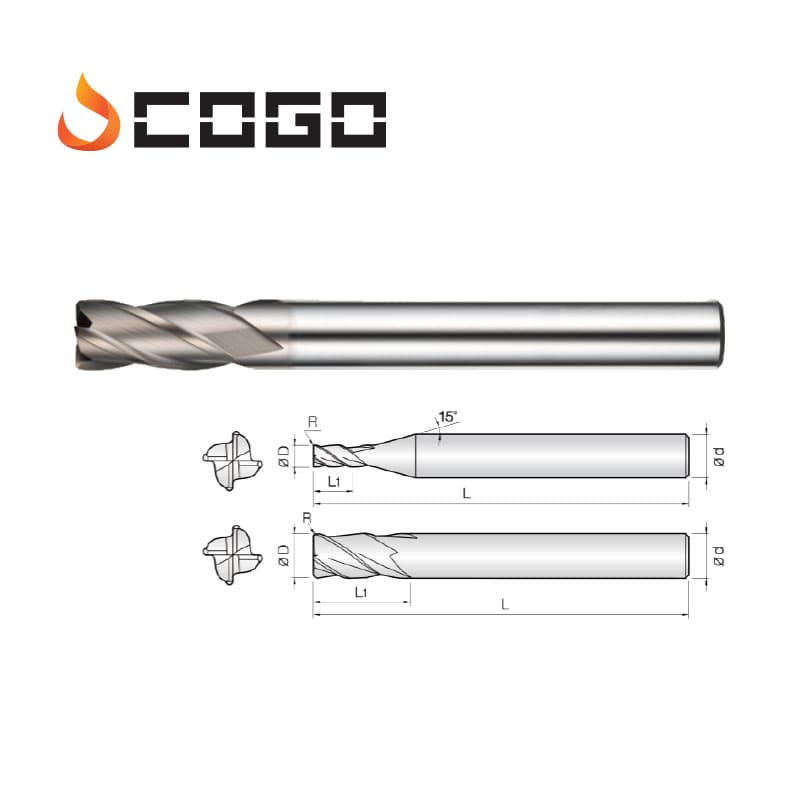

Corner Radius for Generality

4NGR 120 035 110

Corner Radius for Generality
COGO · Milling Tools > Carbide End Mills > Corner Radius
Spec: 4NGR 120 035 110 / K GSERIES · Unit EA
List price (excl. VAT)₩157,220
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Log in
Catalog specifications
4NGR 120 035 110
Diameter
Cutting-tip diameter (R = corner rounding)
Ø12.0 × R3.5
Length of cut (l1)
Length of the actual cutting edge
26 mm
Overall length (L)
Total length of the tool
110 mm
Shank dia (φd)
Diameter of the shank held by the machine
12 mm
Substitute item (from ERP)
4NCRG 120 035 110 · 코너 레디우스 엔드밀
When out of stock, the substitute item's stock can be used.
Items in the same group (click to switch)
CodeNameSpecList priceStock
4NGR 010 0005 S04Corner Radius for Generality4NGR 010 0005 S04 / K GSERIES₩24,630Inquiry
4NGR 010 001 S04Corner Radius for Generality4NGR 010 001 S04 / K GSERIES₩24,630Inquiry
4NGR 010 002 S04Corner Radius for Generality4NGR 010 002 S04 / K GSERIES₩24,630Inquiry
4NGR 010 003 S04Corner Radius for Generality4NGR 010 003 S04 / K GSERIES₩24,630Inquiry
4NGR 015 0005 S04Corner Radius for Generality4NGR 015 0005 S04 / K GSERIES₩24,630Inquiry
4NGR 015 001 S04Corner Radius for Generality4NGR 015 001 S04 / K GSERIES₩24,630Inquiry
4NGR 015 002 S04Corner Radius for Generality4NGR 015 002 S04 / K GSERIES₩24,630Inquiry
4NGR 015 003 S04Corner Radius for Generality4NGR 015 003 S04 / K GSERIES₩24,630Inquiry
4NGR 015 005 S04Corner Radius for Generality4NGR 015 005 S04 / K GSERIES₩24,630Inquiry
4NGR 020 0005 S04Corner Radius for Generality4NGR 020 0005 S04 / K GSERIES₩24,630Inquiry
4NGR 020 001 S04Corner Radius for Generality4NGR 020 001 S04 / K GSERIES₩24,630Inquiry
4NGR 020 002 S04Corner Radius for Generality4NGR 020 002 S04 / K GSERIES₩24,630Inquiry
4NGR 020 003 S04Corner Radius for Generality4NGR 020 003 S04 / K GSERIES₩24,630Inquiry
4NGR 020 005 S04Corner Radius for Generality4NGR 020 005 S04 / K GSERIES₩24,630Inquiry
4NGR 025 001 S04Corner Radius for Generality4NGR 025 001 S04 / K GSERIES₩27,020Inquiry
4NGR 025 002 S04Corner Radius for Generality4NGR 025 002 S04 / K GSERIES₩27,020Inquiry
4NGR 025 003 S04Corner Radius for Generality4NGR 025 003 S04 / K GSERIES₩27,020Inquiry
4NGR 025 005 S04Corner Radius for Generality4NGR 025 005 S04 / K GSERIES₩27,020Inquiry
4NGR 030 001 S06Corner Radius for Generality4NGR 030 001 S06 / K GSERIES₩36,060Inquiry
4NGR 030 002 S06Corner Radius for Generality4NGR 030 002 S06 / K GSERIES₩36,060Inquiry
4NGR 030 003 S06Corner Radius for Generality4NGR 030 003 S06 / K GSERIES₩36,060Inquiry
4NGR 030 005 S03Corner Radius for Generality4NGR 030 005 S03 / K GSERIESAsk for priceInquiry
4NGR 030 005 S06Corner Radius for Generality4NGR 030 005 S06 / K GSERIES₩36,060Inquiry
4NGR 030 010 S06Corner Radius for Generality4NGR 030 010 S06 / K GSERIES₩36,060Inquiry
4NGR 040 001 060Corner Radius for Generality4NGR 040 001 060 / K GSERIES₩28,540Inquiry
4NGR 040 001 080Corner Radius for Generality4NGR 040 001 080 / K GSERIES₩29,800Inquiry
4NGR 040 001 S06Corner Radius for Generality4NGR 040 001 S06 / K GSERIES₩36,060Inquiry
4NGR 040 002 060Corner Radius for Generality4NGR 040 002 060 / K GSERIES₩28,540Inquiry
4NGR 040 002 080Corner Radius for Generality4NGR 040 002 080 / K GSERIES₩29,800Inquiry
4NGR 040 002 S06Corner Radius for Generality4NGR 040 002 S06 / K GSERIES₩36,060Inquiry
4NGR 040 003 060Corner Radius for Generality4NGR 040 003 060 / K GSERIES₩28,540Inquiry
4NGR 040 003 080Corner Radius for Generality4NGR 040 003 080 / K GSERIES₩29,800Inquiry
4NGR 040 003 S06Corner Radius for Generality4NGR 040 003 S06 / K GSERIES₩36,060Inquiry
4NGR 040 005 060Corner Radius for Generality4NGR 040 005 060 / K GSERIES₩28,540Inquiry
4NGR 040 005 080Corner Radius for Generality4NGR 040 005 080 / K GSERIES₩29,800Inquiry
4NGR 040 005 S06Corner Radius for Generality4NGR 040 005 S06 / K GSERIES₩36,060Inquiry
4NGR 040 010 060Corner Radius for Generality4NGR 040 010 060 / K GSERIES₩28,540Inquiry
4NGR 040 010 080Corner Radius for Generality4NGR 040 010 080 / K GSERIES₩29,800Inquiry
4NGR 040 010 S06Corner Radius for Generality4NGR 040 010 S06 / K GSERIES₩36,060Inquiry
4NGR 050 001 S06Corner Radius for Generality4NGR 050 001 S06 / K GSERIES₩38,450Inquiry
