All categories · 4MSB 012 030 S06
Ball Endmills for Various Symmetry

4MSB 012 030 S06

Ball Endmills for Various Symmetry
COGO · Milling Tools > Carbide End Mills > Ball
Spec: 4MSB 012 030 S06 / K MULTI · Unit EA
List price (excl. VAT)₩34,400
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Log in

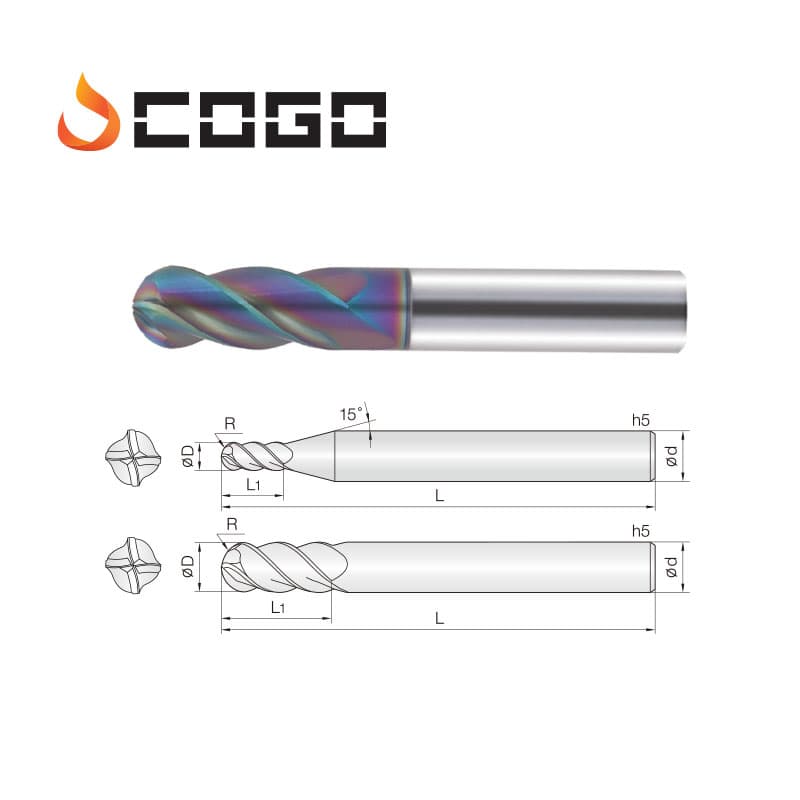

Catalog specifications
4MSB 012 030 S06
Diameter
Cutting-tip diameter (R = corner rounding)
Ø0.6
Length of cut (l1)
Length of the actual cutting edge
3 mm
Overall length (L)
Total length of the tool
50 mm
Shank dia (φd)
Diameter of the shank held by the machine
6 mm
Items in the same group (click to switch)
CodeNameSpecList priceStock
4MSB 010 025 S06Ball Endmills for Various Symmetry4MSB 010 025 S06 / K MULTI₩34,400Inquiry
4MSB 012 030 S06Ball Endmills for Various Symmetry4MSB 012 030 S06 / K MULTI₩34,400Inquiry
4MSB 015 040 S06Ball Endmills for Various Symmetry4MSB 015 040 S06 / K MULTI₩34,400Inquiry
4MSB 020 050 S06Ball Endmills for Various Symmetry4MSB 020 050 S06 / K MULTI₩34,400Inquiry
4MSB 025 060 S06Ball Endmills for Various Symmetry4MSB 025 060 S06 / K MULTI₩34,400Inquiry
4MSB 030 060 S03Ball Endmills for Various Symmetry4MSB 030 060 S03 / K MULTI₩27,640Inquiry
4MSB 030 080 S06Ball Endmills for Various Symmetry4MSB 030 080 S06 / K MULTI₩34,400Inquiry
4MSB 040 080 S04Ball Endmills for Various Symmetry4MSB 040 080 S04 / K MULTI₩28,010Inquiry
4MSB 040 100 S06Ball Endmills for Various Symmetry4MSB 040 100 S06 / K MULTI₩34,400Inquiry
4MSB 050 150 S06Ball Endmills for Various Symmetry4MSB 050 150 S06 / K MULTI₩35,280Inquiry
4MSB 060 150 090Ball Endmills for Various Symmetry4MSB 060 150 090 / K MULTI₩40,200Inquiry
4MSB 060 150 S06Ball Endmills for Various Symmetry4MSB 060 150 S06 / K MULTI₩35,280Inquiry
4MSB 080 200 100Ball Endmills for Various Symmetry4MSB 080 200 100 / K MULTI₩68,240Inquiry
4MSB 080 200 S08Ball Endmills for Various Symmetry4MSB 080 200 S08 / K MULTI₩60,440Inquiry
4MSB 100 250 100Ball Endmills for Various Symmetry4MSB 100 250 100 / K MULTI₩101,930Inquiry
4MSB 100 250 S10Ball Endmills for Various Symmetry4MSB 100 250 S10 / K MULTI₩95,630Inquiry
4MSB 120 300 120Ball Endmills for Various Symmetry4MSB 120 300 120 / K MULTI₩156,210Inquiry
4MSB 120 300 S12Ball Endmills for Various Symmetry4MSB 120 300 S12 / K MULTI₩135,240Inquiry
4MSB 160 400 130Ball Endmills for Various Symmetry4MSB 160 400 130 / K MULTI₩407,530Inquiry
4MSB 160 400 S16Ball Endmills for Various Symmetry4MSB 160 400 S16 / K MULTI₩346,170Inquiry
4MSB 200 450 150Ball Endmills for Various Symmetry4MSB 200 450 150 / K MULTI₩576,670Inquiry
4MSB 200 450 S20Ball Endmills for Various Symmetry4MSB 200 450 S20 / K MULTI₩486,010Inquiry
4MSB 250 500 160Ball Endmills for Various Symmetry4MSB 250 500 160 / K MULTI₩949,920Inquiry
4MSB 250 500 S25Ball Endmills for Various Symmetry4MSB 250 500 S25 / K MULTI₩849,270Inquiry
