All categories · 4KCR 100 005 75L

4KCR 100 005 75L

Rib Corner Radius

COGO · Milling Tools > Carbide End Mills > Corner Radius

Spec: 4KCR 100 005 75L / K HARD · Unit EA

List price (excl. VAT)₩115,820

StockAsk for stock (Log in for live stock)

Log in to see live stock and member prices, and place orders.

Need stock info or a quote? Log in or send a quote request.

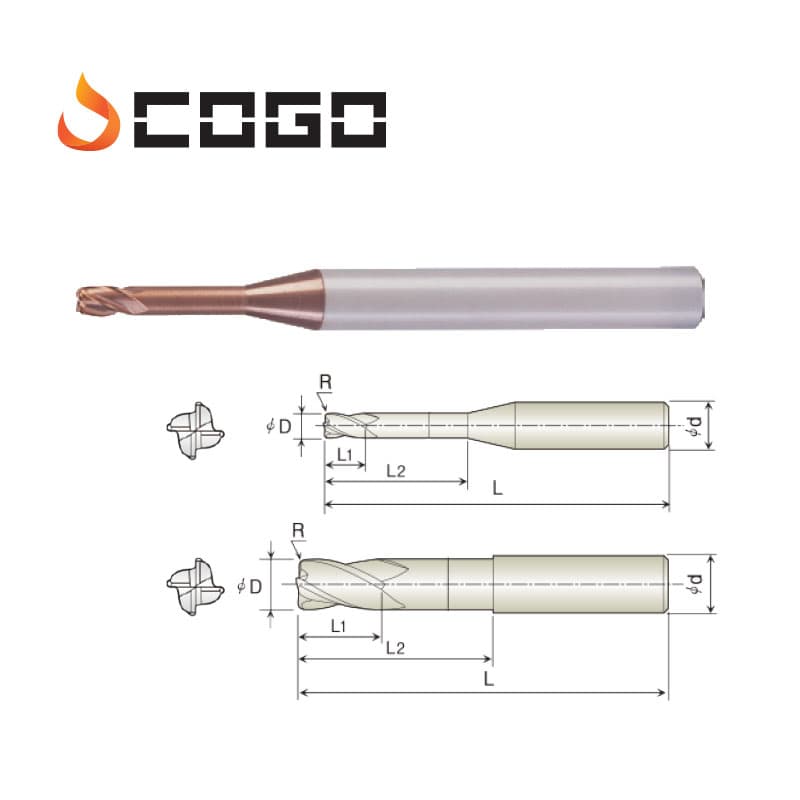

Catalog specifications

4KCR 100 005 75L

Diameter Cutting-tip diameter (R = corner rounding)	Ø10.0 × R0.5
Length of cut (l1) Length of the actual cutting edge	15 mm
Effective length (l2) Usable reach (necked length)	30 mm
Overall length (L) Total length of the tool	75 mm
Shank dia (φd) Diameter of the shank held by the machine	10 mm

Substitute item (from ERP)

4HRR-100-R05-300-A75 · CARBIDE RIB CORNER RADIUS ENDMILLS

When out of stock, the substitute item's stock can be used.

Items in the same group (click to switch)

Code	Name	Spec	List price	Stock
4KCR 008 0002 020	Rib Corner Radius	4KCR 008 0002 020 / K HARD	₩34,310	Inquiry
4KCR 008 0002 040	Rib Corner Radius	4KCR 008 0002 040 / K HARD	₩34,310	Inquiry
4KCR 008 0002 060	Rib Corner Radius	4KCR 008 0002 060 / K HARD	₩34,310	Inquiry
4KCR 008 0002 080	Rib Corner Radius	4KCR 008 0002 080 / K HARD	₩34,310	Inquiry
4KCR 008 0002 100	Rib Corner Radius	4KCR 008 0002 100 / K HARD	₩34,310	Inquiry
4KCR 008 0005 020	Rib Corner Radius	4KCR 008 0005 020 / K HARD	₩34,310	Inquiry
4KCR 008 0005 040	Rib Corner Radius	4KCR 008 0005 040 / K HARD	₩34,310	Inquiry
4KCR 008 0005 060	Rib Corner Radius	4KCR 008 0005 060 / K HARD	₩34,310	Inquiry
4KCR 008 0005 080	Rib Corner Radius	4KCR 008 0005 080 / K HARD	₩34,310	Inquiry
4KCR 008 0005 100	Rib Corner Radius	4KCR 008 0005 100 / K HARD	₩34,310	Inquiry
4KCR 008 001 020	Rib Corner Radius	4KCR 008 001 020 / K HARD	₩34,310	Inquiry
4KCR 008 001 040	Rib Corner Radius	4KCR 008 001 040 / K HARD	₩34,310	Inquiry
4KCR 008 001 060	Rib Corner Radius	4KCR 008 001 060 / K HARD	₩34,310	Inquiry
4KCR 008 001 080	Rib Corner Radius	4KCR 008 001 080 / K HARD	₩34,310	Inquiry
4KCR 008 001 100	Rib Corner Radius	4KCR 008 001 100 / K HARD	₩34,310	Inquiry
4KCR 010 0002 040	Rib Corner Radius	4KCR 010 0002 040 / K HARD	₩32,290	Inquiry
4KCR 010 0002 060	Rib Corner Radius	4KCR 010 0002 060 / K HARD	₩32,290	Inquiry
4KCR 010 0002 080	Rib Corner Radius	4KCR 010 0002 080 / K HARD	₩32,290	Inquiry
4KCR 010 0002 100	Rib Corner Radius	4KCR 010 0002 100 / K HARD	₩33,900	Inquiry
4KCR 010 0002 120	Rib Corner Radius	4KCR 010 0002 120 / K HARD	₩33,900	Inquiry
4KCR 010 0002 160	Rib Corner Radius	4KCR 010 0002 160 / K HARD	₩33,900	Inquiry
4KCR 010 0002 200	Rib Corner Radius	4KCR 010 0002 200 / K HARD	₩35,190	Inquiry
4KCR 010 0005 040	Rib Corner Radius	4KCR 010 0005 040 / K HARD	₩32,290	Inquiry
4KCR 010 0005 060	Rib Corner Radius	4KCR 010 0005 060 / K HARD	₩32,290	Inquiry
4KCR 010 0005 080	Rib Corner Radius	4KCR 010 0005 080 / K HARD	₩32,290	Inquiry
4KCR 010 0005 100	Rib Corner Radius	4KCR 010 0005 100 / K HARD	₩33,900	Inquiry
4KCR 010 0005 120	Rib Corner Radius	4KCR 010 0005 120 / K HARD	₩33,900	Inquiry
4KCR 010 0005 160	Rib Corner Radius	4KCR 010 0005 160 / K HARD	₩33,900	Inquiry
4KCR 010 0005 200	Rib Corner Radius	4KCR 010 0005 200 / K HARD	₩35,190	Inquiry
4KCR 010 001 040	Rib Corner Radius	4KCR 010 001 040 / K HARD	₩32,290	Inquiry
4KCR 010 001 060	Rib Corner Radius	4KCR 010 001 060 / K HARD	₩32,290	Inquiry
4KCR 010 001 080	Rib Corner Radius	4KCR 010 001 080 / K HARD	₩32,290	Inquiry
4KCR 010 001 100	Rib Corner Radius	4KCR 010 001 100 / K HARD	₩33,900	Inquiry
4KCR 010 001 120	Rib Corner Radius	4KCR 010 001 120 / K HARD	₩33,900	Inquiry
4KCR 010 001 160	Rib Corner Radius	4KCR 010 001 160 / K HARD	₩33,900	Inquiry
4KCR 010 001 200	Rib Corner Radius	4KCR 010 001 200 / K HARD	₩35,190	Inquiry
4KCR 010 002 040	Rib Corner Radius	4KCR 010 002 040 / K HARD	₩32,290	Inquiry
4KCR 010 002 060	Rib Corner Radius	4KCR 010 002 060 / K HARD	₩32,290	Inquiry
4KCR 010 002 080	Rib Corner Radius	4KCR 010 002 080 / K HARD	₩32,290	Inquiry
4KCR 010 002 100	Rib Corner Radius	4KCR 010 002 100 / K HARD	₩33,900	Inquiry
