All categories · 4CRS 040 002 200
Rib Corner Radius

4CRS 040 002 200

Rib Corner Radius
COGO · Milling Tools > Carbide End Mills > Corner Radius
Spec: 4CRS 040 002 200 / K SUS · Unit EA
List price (excl. VAT)₩45,580
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Log in

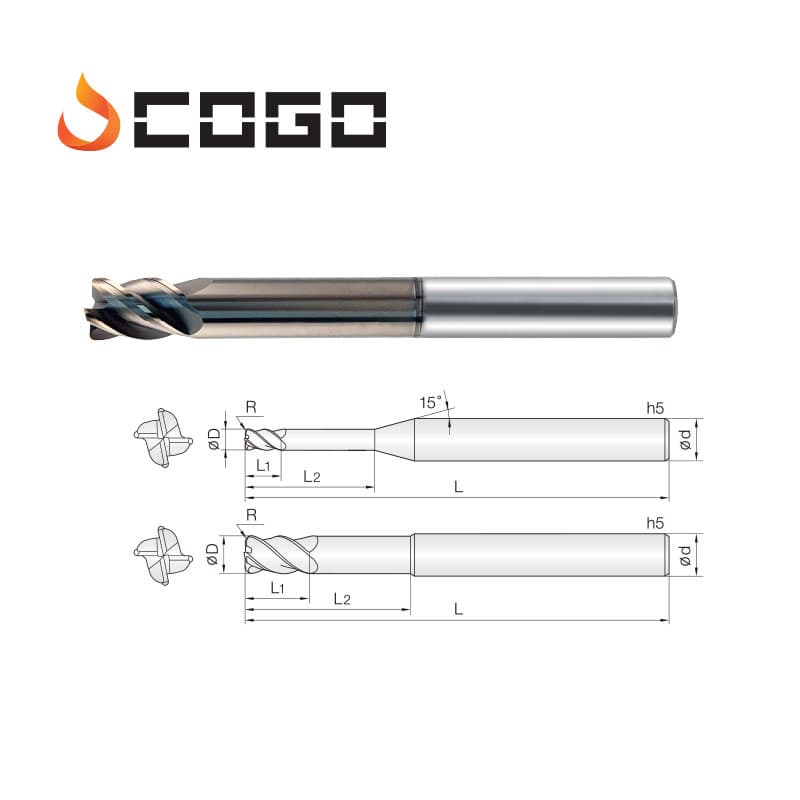

Catalog specifications
4CRS 040 002 200
Diameter
Cutting-tip diameter (R = corner rounding)
Ø4.0 × R0.2
Length of cut (l1)
Length of the actual cutting edge
6 mm
Effective length (l2)
Usable reach (necked length)
20 mm
Overall length (L)
Total length of the tool
70 mm
Shank dia (φd)
Diameter of the shank held by the machine
6 mm
Items in the same group (click to switch)
CodeNameSpecList priceStock
4CRS 010 001 050Rib Corner Radius4CRS 010 001 050 / K SUS₩30,680Inquiry
4CRS 010 001 060Rib Corner Radius4CRS 010 001 060 / K SUS₩32,310Inquiry
4CRS 010 001 080Rib Corner Radius4CRS 010 001 080 / K SUS₩32,310Inquiry
4CRS 020 001 100Rib Corner Radius4CRS 020 001 100 / K SUS₩30,680Inquiry
4CRS 020 001 120Rib Corner Radius4CRS 020 001 120 / K SUS₩32,310Inquiry
4CRS 020 001 160Rib Corner Radius4CRS 020 001 160 / K SUS₩33,600Inquiry
4CRS 020 002 100Rib Corner Radius4CRS 020 002 100 / K SUS₩30,680Inquiry
4CRS 020 002 120Rib Corner Radius4CRS 020 002 120 / K SUS₩32,310Inquiry
4CRS 020 002 160Rib Corner Radius4CRS 020 002 160 / K SUS₩33,600Inquiry
4CRS 030 002 150Rib Corner Radius4CRS 030 002 150 / K SUS₩43,810Inquiry
4CRS 030 002 200Rib Corner Radius4CRS 030 002 200 / K SUS₩45,580Inquiry
4CRS 030 005 150Rib Corner Radius4CRS 030 005 150 / K SUS₩43,810Inquiry
4CRS 030 005 200Rib Corner Radius4CRS 030 005 200 / K SUS₩45,580Inquiry
4CRS 040 002 200Rib Corner Radius4CRS 040 002 200 / K SUS₩45,580Inquiry
4CRS 040 002 300Rib Corner Radius4CRS 040 002 300 / K SUS₩52,300Inquiry
4CRS 040 005 200Rib Corner Radius4CRS 040 005 200 / K SUS₩45,580Inquiry
4CRS 040 005 300Rib Corner Radius4CRS 040 005 300 / K SUS₩52,300Inquiry
4CRS 040 010 200Rib Corner Radius4CRS 040 010 200 / K SUS₩45,580Inquiry
4CRS 050 002 250Rib Corner Radius4CRS 050 002 250 / K SUS₩45,580Inquiry
4CRS 050 002 360Rib Corner Radius4CRS 050 002 360 / K SUS₩52,300Inquiry
4CRS 050 005 250Rib Corner Radius4CRS 050 005 250 / K SUS₩45,580Inquiry
4CRS 050 005 360Rib Corner Radius4CRS 050 005 360 / K SUS₩52,300Inquiry
4CRS 050 010 250Rib Corner Radius4CRS 050 010 250 / K SUS₩45,580Inquiry
4CRS 060 003 300Rib Corner Radius4CRS 060 003 300 / K SUS₩45,580Inquiry
4CRS 060 003 400Rib Corner Radius4CRS 060 003 400 / K SUS₩52,300Inquiry
4CRS 060 005 300Rib Corner Radius4CRS 060 005 300 / K SUS₩45,580Inquiry
4CRS 060 005 400Rib Corner Radius4CRS 060 005 400 / K SUS₩52,300Inquiry
4CRS 060 010 300Rib Corner Radius4CRS 060 010 300 / K SUS₩45,580Inquiry
4CRS 060 010 400Rib Corner Radius4CRS 060 010 400 / K SUS₩52,300Inquiry
4CRS 060 015 300Rib Corner Radius4CRS 060 015 300 / K SUS₩45,580Inquiry
4CRS 070 003 350Rib Corner Radius4CRS 070 003 350 / K SUS₩89,190Inquiry
4CRS 070 005 350Rib Corner Radius4CRS 070 005 350 / K SUS₩89,190Inquiry
4CRS 070 010 350Rib Corner Radius4CRS 070 010 350 / K SUS₩89,190Inquiry
4CRS 080 003 400Rib Corner Radius4CRS 080 003 400 / K SUS₩78,220Inquiry
4CRS 080 005 400Rib Corner Radius4CRS 080 005 400 / K SUS₩78,220Inquiry
4CRS 080 010 400Rib Corner Radius4CRS 080 010 400 / K SUS₩78,220Inquiry
4CRS 080 015 400Rib Corner Radius4CRS 080 015 400 / K SUS₩78,220Inquiry
4CRS 080 020 400Rib Corner Radius4CRS 080 020 400 / K SUS₩78,220Inquiry
4CRS 090 003 450Rib Corner Radius4CRS 090 003 450 / K SUS₩145,680Inquiry
4CRS 090 005 450Rib Corner Radius4CRS 090 005 450 / K SUS₩145,680Inquiry
