Corner Radius Endmills

4BNR 100 010 100

Corner Radius Endmills
COGO · Milling Tools > Carbide End Mills > Corner Radius
Spec: 4BNR 100 010 100 / B HARD · Unit EA
List price (excl. VAT)₩145,100
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Log in

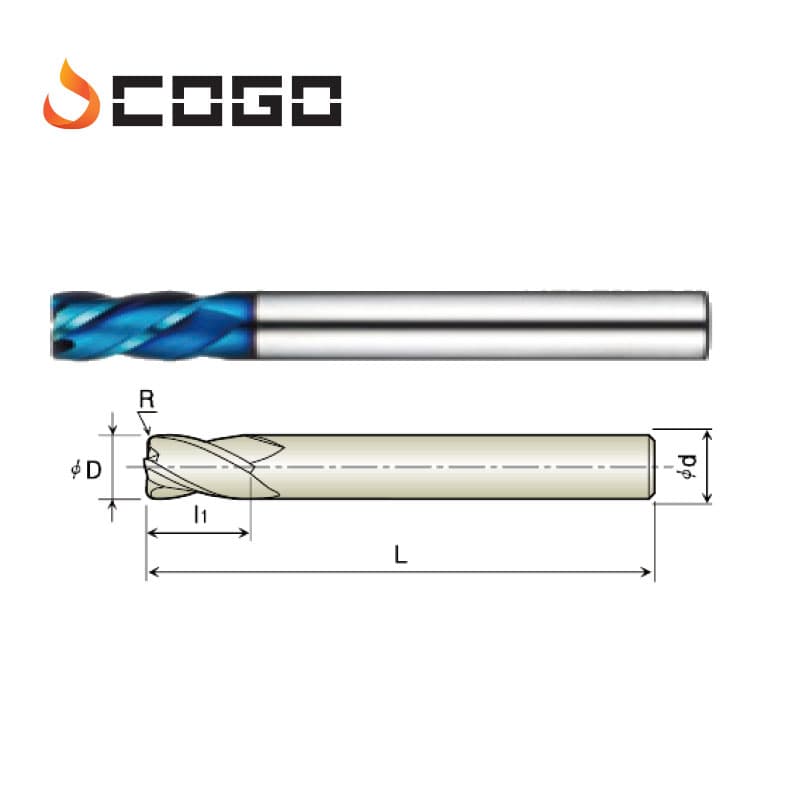

Catalog specifications
4BNR 100 010 100
Diameter
Cutting-tip diameter (R = corner rounding)
Ø10.0 × R1.0
Length of cut (l1)
Length of the actual cutting edge
22 mm
Overall length (L)
Total length of the tool
100 mm
Shank dia (φd)
Diameter of the shank held by the machine
10 mm
Substitute item (from ERP)
4RCR-100-R10-220-AA0 · 4날 초경 코너 래디우스 엔드밀
When out of stock, the substitute item's stock can be used.
Items in the same group (click to switch)
CodeNameSpecList priceStock
4BNR 010 001 S04Corner Radius Endmills4BNR 010 001 S04 / B HARD₩31,550Inquiry
4BNR 010 002 S04Corner Radius Endmills4BNR 010 002 S04 / B HARD₩31,550Inquiry
4BNR 010 003 S04Corner Radius Endmills4BNR 010 003 S04 / B HARD₩31,550Inquiry
4BNR 015 001 S04Corner Radius Endmills4BNR 015 001 S04 / B HARD₩31,550Inquiry
4BNR 015 002 S04Corner Radius Endmills4BNR 015 002 S04 / B HARD₩31,550Inquiry
4BNR 015 003 S04Corner Radius Endmills4BNR 015 003 S04 / B HARD₩31,550Inquiry
4BNR 015 005 S04Corner Radius Endmills4BNR 015 005 S04 / B HARD₩31,550Inquiry
4BNR 020 001 S04Corner Radius Endmills4BNR 020 001 S04 / B HARD₩31,550Inquiry
4BNR 020 002 S04Corner Radius Endmills4BNR 020 002 S04 / B HARD₩31,550Inquiry
4BNR 020 003 S04Corner Radius Endmills4BNR 020 003 S04 / B HARD₩31,550Inquiry
4BNR 020 005 S04Corner Radius Endmills4BNR 020 005 S04 / B HARD₩31,550Inquiry
4BNR 025 001 S04Corner Radius Endmills4BNR 025 001 S04 / B HARD₩34,700Inquiry
4BNR 025 002 S04Corner Radius Endmills4BNR 025 002 S04 / B HARD₩34,700Inquiry
4BNR 025 003 S04Corner Radius Endmills4BNR 025 003 S04 / B HARD₩34,700Inquiry
4BNR 025 005 S04Corner Radius Endmills4BNR 025 005 S04 / B HARD₩34,700Inquiry
4BNR 030 001 S06Corner Radius Endmills4BNR 030 001 S06 / B HARD₩48,090Inquiry
4BNR 030 002 S06Corner Radius Endmills4BNR 030 002 S06 / B HARD₩48,090Inquiry
4BNR 030 003 S06Corner Radius Endmills4BNR 030 003 S06 / B HARD₩48,090Inquiry
4BNR 030 005 S06Corner Radius Endmills4BNR 030 005 S06 / B HARD₩48,090Inquiry
4BNR 040 001 S06Corner Radius Endmills4BNR 040 001 S06 / B HARD₩48,090Inquiry
4BNR 040 002 050_SCorner Radius Endmills4BNR 040 002 050_S / B HARDAsk for priceInquiry
4BNR 040 002 S06Corner Radius Endmills4BNR 040 002 S06 / B HARD₩48,090Inquiry
4BNR 040 003 S06Corner Radius Endmills4BNR 040 003 S06 / B HARD₩48,090Inquiry
4BNR 040 005 S06Corner Radius Endmills4BNR 040 005 S06 / B HARD₩48,090Inquiry
4BNR 040 010 S06Corner Radius Endmills4BNR 040 010 S06 / B HARD₩48,090Inquiry
4BNR 050 001 S06Corner Radius Endmills4BNR 050 001 S06 / B HARD₩50,480Inquiry
4BNR 050 002 S06Corner Radius Endmills4BNR 050 002 S06 / B HARD₩50,480Inquiry
4BNR 050 003 S06Corner Radius Endmills4BNR 050 003 S06 / B HARD₩50,480Inquiry
4BNR 050 005 S06Corner Radius Endmills4BNR 050 005 S06 / B HARD₩50,480Inquiry
4BNR 050 010 S06Corner Radius Endmills4BNR 050 010 S06 / B HARD₩50,480Inquiry
4BNR 060 001 090Corner Radius Endmills4BNR 060 001 090 / B HARD₩52,730Inquiry
4BNR 060 002 050_SCorner Radius Endmills4BNR 060 002 050_S / B HARDAsk for priceInquiry
4BNR 060 002 090Corner Radius Endmills4BNR 060 002 090 / B HARD₩52,730Inquiry
4BNR 060 003 090Corner Radius Endmills4BNR 060 003 090 / B HARD₩52,730Inquiry
4BNR 060 005 090Corner Radius Endmills4BNR 060 005 090 / B HARD₩52,730Inquiry
4BNR 060 010 090Corner Radius Endmills4BNR 060 010 090 / B HARD₩52,730Inquiry
4BNR 080 001 100Corner Radius Endmills4BNR 080 001 100 / B HARD₩89,100Inquiry
4BNR 080 002 065_SCorner Radius Endmills4BNR 080 002 065_S / B HARDAsk for priceInquiry
4BNR 080 002 100Corner Radius Endmills4BNR 080 002 100 / B HARD₩89,100Inquiry
4BNR 080 003 100Corner Radius Endmills4BNR 080 003 100 / B HARD₩89,100Inquiry
