All categories · 3SCB 040 080 S04
3SCB 040 080 S04
Standard Ball Endmills
List price (excl. VAT)₩31,440
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.

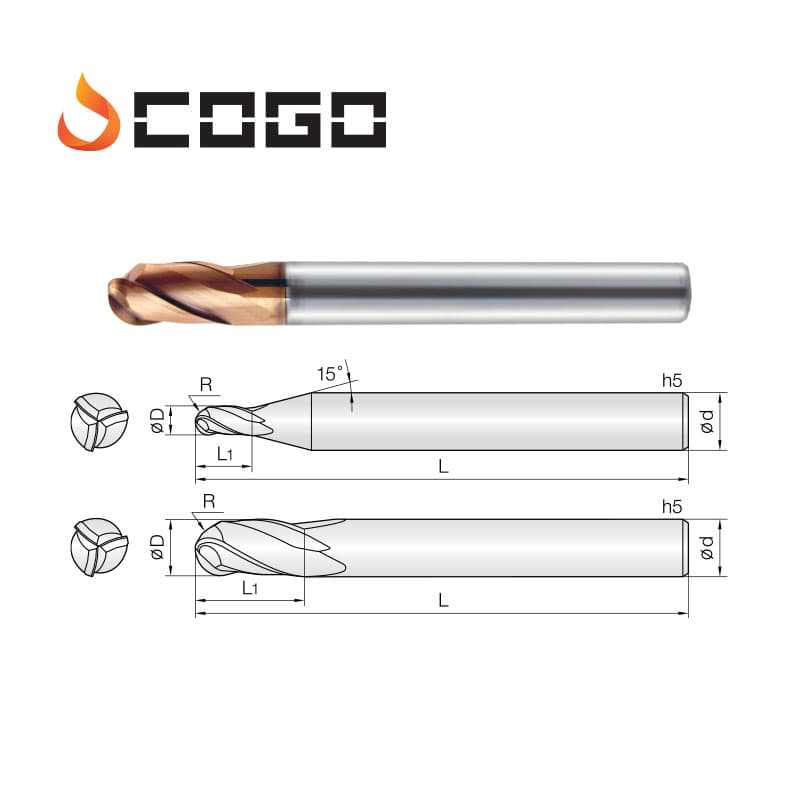

Catalog specifications
3SCB 040 080 S04
| Diameter Cutting-tip diameter (R = corner rounding) | Ø2.0 |
|---|---|
| Length of cut (l1) Length of the actual cutting edge | 8 mm |
| Overall length (L) Total length of the tool | 60 mm |
| Shank dia (φd) Diameter of the shank held by the machine | 4 mm |
Substitute item (from ERP)
3HCB 040 080 S04 · 표준 길이 볼 엔드밀When out of stock, the substitute item's stock can be used.
Items in the same group (click to switch)
| Code | Name | Spec | List price | Stock |
|---|---|---|---|---|
| 3SCB 010 025 S04 | Standard Ball Endmills | 3SCB 010 025 S04 / K SPEED | ₩33,230 | Inquiry |
| 3SCB 015 040 S04 | Standard Ball Endmills | 3SCB 015 040 S04 / K SPEED | ₩33,230 | Inquiry |
| 3SCB 020 050 S06 | Standard Ball Endmills | 3SCB 020 050 S06 / K SPEED | ₩39,950 | Inquiry |
| 3SCB 030 080 S06 | Standard Ball Endmills | 3SCB 030 080 S06 / K SPEED | ₩41,720 | Inquiry |
| 3SCB 040 080 S04 | Standard Ball Endmills | 3SCB 040 080 S04 / K SPEED | ₩31,440 | Inquiry |
| 3SCB 040 080 S06 | Standard Ball Endmills | 3SCB 040 080 S06 / K SPEED | ₩41,720 | Inquiry |
| 3SCB 050 100 S06 | Standard Ball Endmills | 3SCB 050 100 S06 / K SPEED | ₩46,020 | Inquiry |
| 3SCB 060 120 120 | Standard Ball Endmills | 3SCB 060 120 120 / K SPEED | ₩61,240 | Inquiry |
| 3SCB 060 120 S06 | Standard Ball Endmills | 3SCB 060 120 S06 / K SPEED | ₩46,020 | Inquiry |
| 3SCB 080 140 150 | Standard Ball Endmills | 3SCB 080 140 150 / K SPEED | ₩128,910 | Inquiry |
| 3SCB 080 140 S08 | Standard Ball Endmills | 3SCB 080 140 S08 / K SPEED | ₩82,450 | Inquiry |
| 3SCB 100 180 150 | Standard Ball Endmills | 3SCB 100 180 150 / K SPEED | ₩192,410 | Inquiry |
| 3SCB 100 180 S10 | Standard Ball Endmills | 3SCB 100 180 S10 / K SPEED | ₩127,990 | Inquiry |
| 3SCB 120 220 150 | Standard Ball Endmills | 3SCB 120 220 150 / K SPEED | ₩246,140 | Inquiry |
| 3SCB 120 220 S12 | Standard Ball Endmills | 3SCB 120 220 S12 / K SPEED | ₩181,210 | Inquiry |
