All categories · 3HOR 025 001 160
45° 45° Helix Rib Radius

3HOR 025 001 160

45° 45° Helix Rib Radius
COGO · Milling Tools > Carbide End Mills > Corner Radius
Spec: 3HOR 025 001 160 / K COPPER · Unit EA
List price (excl. VAT)₩29,800
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Log in

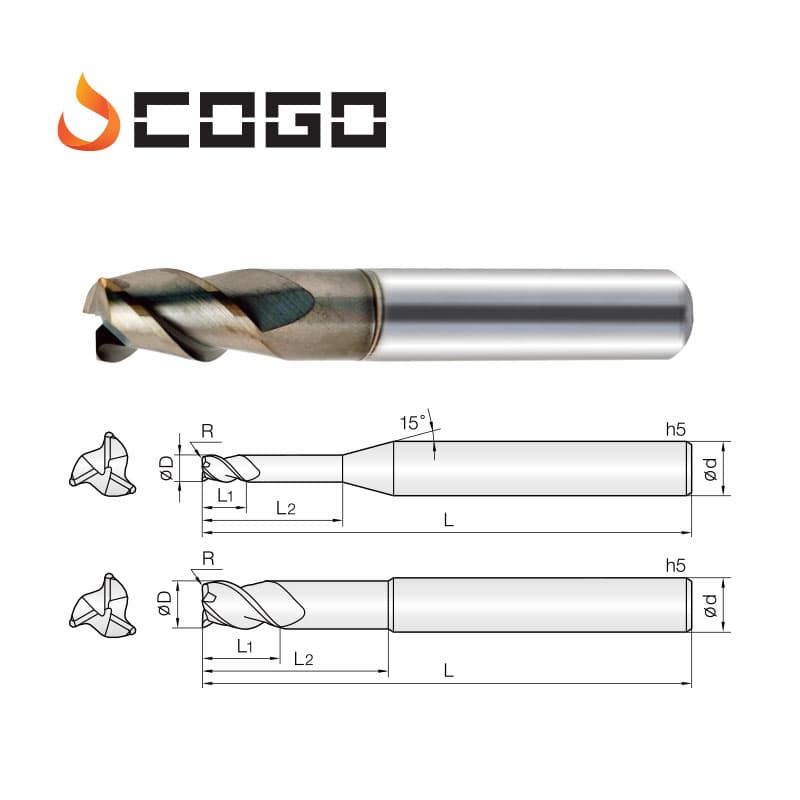

Catalog specifications
3HOR 025 001 160
Diameter
Cutting-tip diameter (R = corner rounding)
Ø2.5 × R0.1
Length of cut (l1)
Length of the actual cutting edge
3.5 mm
Effective length (l2)
Usable reach (necked length)
16 mm
Overall length (L)
Total length of the tool
45 mm
Shank dia (φd)
Diameter of the shank held by the machine
4 mm
Substitute item (from ERP)
3COR 025 001 160 · 45˚ 헬릭스 리브 코너 레디우스
When out of stock, the substitute item's stock can be used.
Items in the same group (click to switch)
CodeNameSpecList priceStock
3HOR 010 001 03045° 45° Helix Rib Radius3HOR 010 001 030 / K COPPER₩28,450Inquiry
3HOR 010 001 06045° 45° Helix Rib Radius3HOR 010 001 060 / K COPPER₩28,450Inquiry
3HOR 010 001 10045° 45° Helix Rib Radius3HOR 010 001 100 / K COPPER₩29,800Inquiry
3HOR 010 002 03045° 45° Helix Rib Radius3HOR 010 002 030 / K COPPER₩28,450Inquiry
3HOR 010 002 06045° 45° Helix Rib Radius3HOR 010 002 060 / K COPPER₩28,450Inquiry
3HOR 010 002 10045° 45° Helix Rib Radius3HOR 010 002 100 / K COPPER₩29,800Inquiry
3HOR 015 001 05045° 45° Helix Rib Radius3HOR 015 001 050 / K COPPER₩28,450Inquiry
3HOR 015 001 08045° 45° Helix Rib Radius3HOR 015 001 080 / K COPPER₩28,450Inquiry
3HOR 015 001 12045° 45° Helix Rib Radius3HOR 015 001 120 / K COPPER₩29,800Inquiry
3HOR 015 002 05045° 45° Helix Rib Radius3HOR 015 002 050 / K COPPER₩28,450Inquiry
3HOR 015 002 08045° 45° Helix Rib Radius3HOR 015 002 080 / K COPPER₩28,450Inquiry
3HOR 015 002 12045° 45° Helix Rib Radius3HOR 015 002 120 / K COPPER₩29,800Inquiry
3HOR 020 001 06045° 45° Helix Rib Radius3HOR 020 001 060 / K COPPER₩28,450Inquiry
3HOR 020 001 10045° 45° Helix Rib Radius3HOR 020 001 100 / K COPPER₩29,800Inquiry
3HOR 020 001 14045° 45° Helix Rib Radius3HOR 020 001 140 / K COPPER₩29,800Inquiry
3HOR 020 002 06045° 45° Helix Rib Radius3HOR 020 002 060 / K COPPER₩28,450Inquiry
3HOR 020 002 10045° 45° Helix Rib Radius3HOR 020 002 100 / K COPPER₩29,800Inquiry
3HOR 020 002 14045° 45° Helix Rib Radius3HOR 020 002 140 / K COPPER₩29,800Inquiry
3HOR 020 030 100 S4(WITHOUT RADIUS)45° 45° Helix Rib Radius3HOR 020 030 100 S4(WITHOUT RADIUS) / K COPPER₩15,730Inquiry
3HOR 025 001 08045° 45° Helix Rib Radius3HOR 025 001 080 / K COPPER₩28,450Inquiry
3HOR 025 001 12045° 45° Helix Rib Radius3HOR 025 001 120 / K COPPER₩29,800Inquiry
3HOR 025 001 16045° 45° Helix Rib Radius3HOR 025 001 160 / K COPPER₩29,800Inquiry
3HOR 025 002 08045° 45° Helix Rib Radius3HOR 025 002 080 / K COPPER₩28,450Inquiry
3HOR 025 002 12045° 45° Helix Rib Radius3HOR 025 002 120 / K COPPER₩29,800Inquiry
3HOR 025 002 16045° 45° Helix Rib Radius3HOR 025 002 160 / K COPPER₩29,800Inquiry
3HOR 025 005 08045° 45° Helix Rib Radius3HOR 025 005 080 / K COPPER₩28,450Inquiry
3HOR 025 005 12045° 45° Helix Rib Radius3HOR 025 005 120 / K COPPER₩29,800Inquiry
3HOR 025 005 16045° 45° Helix Rib Radius3HOR 025 005 160 / K COPPER₩29,800Inquiry
3HOR 030 002 10045° 45° Helix Rib Radius3HOR 030 002 100 / K COPPER₩28,450Inquiry
3HOR 030 002 16045° 45° Helix Rib Radius3HOR 030 002 160 / K COPPER₩29,800Inquiry
3HOR 030 002 20045° 45° Helix Rib Radius3HOR 030 002 200 / K COPPER₩31,210Inquiry
3HOR 030 003 10045° 45° Helix Rib Radius3HOR 030 003 100 / K COPPER₩28,450Inquiry
3HOR 030 003 16045° 45° Helix Rib Radius3HOR 030 003 160 / K COPPER₩29,800Inquiry
3HOR 030 003 20045° 45° Helix Rib Radius3HOR 030 003 200 / K COPPER₩31,210Inquiry
3HOR 030 005 10045° 45° Helix Rib Radius3HOR 030 005 100 / K COPPER₩28,450Inquiry
3HOR 030 005 16045° 45° Helix Rib Radius3HOR 030 005 160 / K COPPER₩29,800Inquiry
3HOR 030 005 20045° 45° Helix Rib Radius3HOR 030 005 200 / K COPPER₩31,210Inquiry
3HOR 040 002 12045° 45° Helix Rib Radius3HOR 040 002 120 / K COPPER₩30,080Inquiry
3HOR 040 002 16045° 45° Helix Rib Radius3HOR 040 002 160 / K COPPER₩30,080Inquiry
3HOR 040 002 20045° 45° Helix Rib Radius3HOR 040 002 200 / K COPPER₩31,440Inquiry
