3CFC 010 900 025
90° 90° Chamfering Cutter
List price (excl. VAT)₩44,090
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Catalog specifications
3CFC 010 900 025

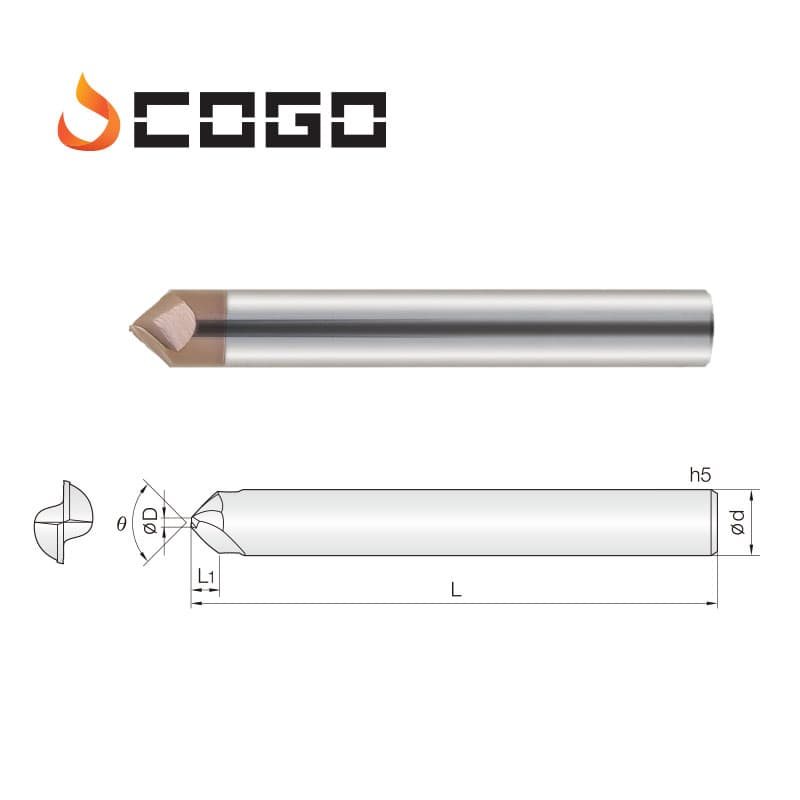

| Diameter Cutting-tip diameter (R = corner rounding) | Ø1.0 |
|---|---|
| Angle (θ) Taper angle of the cutting part | 90 ° |
| Length of cut (l1) Length of the actual cutting edge | 2.5 mm |
| Overall length (L) Total length of the tool | 60 mm |
| Shank dia (φd) Diameter of the shank held by the machine | 6 mm |
Items in the same group (click to switch)
| Code | Name | Spec | List price | Stock |
|---|---|---|---|---|
| 3CFC 008 900 011 | 90° 90° Chamfering Cutter | 3CFC 008 900 011 / K GENERAL | ₩32,840 | Inquiry |
| 3CFC 008 900 016 | 90° 90° Chamfering Cutter | 3CFC 008 900 016 / K GENERAL | ₩32,840 | Inquiry |
| 3CFC 010 900 025 | 90° 90° Chamfering Cutter | 3CFC 010 900 025 / K GENERAL | ₩44,090 | Inquiry |
| 3CFC 010 900 035 | 90° 90° Chamfering Cutter | 3CFC 010 900 035 / K GENERAL | ₩71,180 | Inquiry |
| 3CFC 020 900 040 | 90° 90° Chamfering Cutter | 3CFC 020 900 040 / K GENERAL | ₩106,970 | Inquiry |
| 3CFC 020 900 050 | 90° 90° Chamfering Cutter | 3CFC 020 900 050 / K GENERAL | ₩146,740 | Inquiry |
