3AHMC 030 250 S06

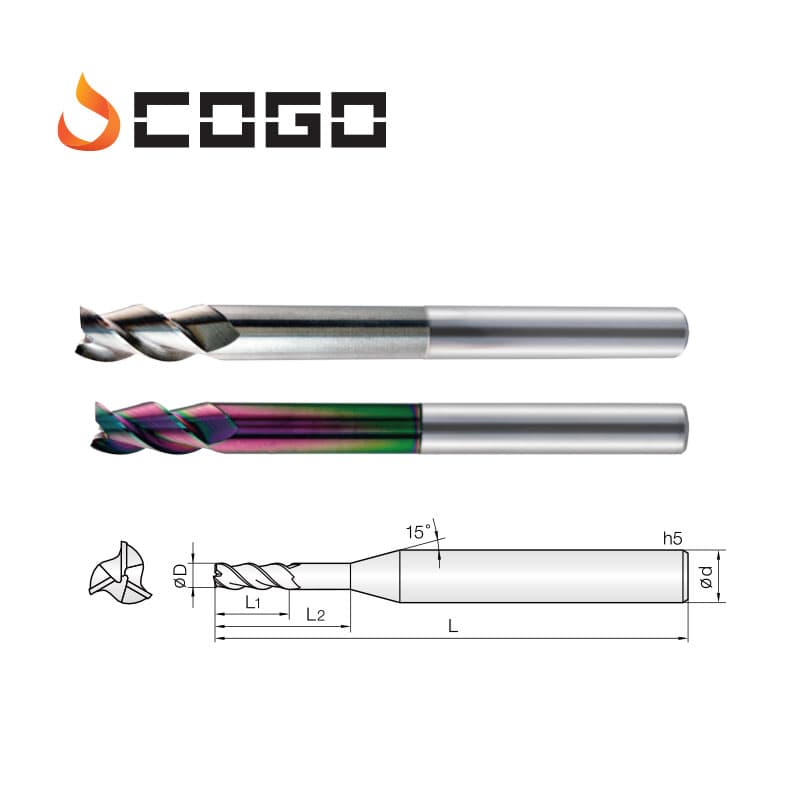

45° 45° Helix Rib Endmills
List price (excl. VAT)₩55,890
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Catalog specifications
3AHMC 030 250 S06
| Diameter Cutting-tip diameter (R = corner rounding) | Ø3.0 |
|---|---|
| Length of cut (l1) Length of the actual cutting edge | 6 mm |
| Effective length (l2) Usable reach (necked length) | 25 mm |
| Overall length (L) Total length of the tool | 70 mm |
| Shank dia (φd) Diameter of the shank held by the machine | 6 mm |
Items in the same group (click to switch)
| Code | Name | Spec | List price | Stock |
|---|---|---|---|---|
| 3AHMC 008 016 S04 | 45° 45° Helix Rib Endmills | 3AHMC 008 016 S04 / K ALUMINUM | ₩35,480 | Inquiry |
| 3AHMC 008 030 S04 | 45° 45° Helix Rib Endmills | 3AHMC 008 030 S04 / K ALUMINUM | ₩38,270 | Inquiry |
| 3AHMC 008 040 S04 | 45° 45° Helix Rib Endmills | 3AHMC 008 040 S04 / K ALUMINUM | ₩38,270 | Inquiry |
| 3AHMC 008 050 S04 | 45° 45° Helix Rib Endmills | 3AHMC 008 050 S04 / K ALUMINUM | ₩38,270 | Inquiry |
| 3AHMC 008 060 S04 | 45° 45° Helix Rib Endmills | 3AHMC 008 060 S04 / K ALUMINUM | ₩38,270 | Inquiry |
| 3AHMC 008 080 S04 | 45° 45° Helix Rib Endmills | 3AHMC 008 080 S04 / K ALUMINUM | ₩39,920 | Inquiry |
| 3AHMC 008 100 S04 | 45° 45° Helix Rib Endmills | 3AHMC 008 100 S04 / K ALUMINUM | ₩39,920 | Inquiry |
| 3AHMC 008 120 S04 | 45° 45° Helix Rib Endmills | 3AHMC 008 120 S04 / K ALUMINUM | ₩39,920 | Inquiry |
| 3AHMC 010 020 S06 | 45° 45° Helix Rib Endmills | 3AHMC 010 020 S06 / K ALUMINUM | ₩43,810 | Inquiry |
| 3AHMC 010 040 S06 | 45° 45° Helix Rib Endmills | 3AHMC 010 040 S06 / K ALUMINUM | ₩49,010 | Inquiry |
| 3AHMC 010 060 S06 | 45° 45° Helix Rib Endmills | 3AHMC 010 060 S06 / K ALUMINUM | ₩49,010 | Inquiry |
| 3AHMC 010 080 S06 | 45° 45° Helix Rib Endmills | 3AHMC 010 080 S06 / K ALUMINUM | ₩50,230 | Inquiry |
| 3AHMC 010 100 S06 | 45° 45° Helix Rib Endmills | 3AHMC 010 100 S06 / K ALUMINUM | ₩50,230 | Inquiry |
| 3AHMC 010 120 S06 | 45° 45° Helix Rib Endmills | 3AHMC 010 120 S06 / K ALUMINUM | ₩50,230 | Inquiry |
| 3AHMC 010 140 S06 | 45° 45° Helix Rib Endmills | 3AHMC 010 140 S06 / K ALUMINUM | ₩50,230 | Inquiry |
| 3AHMC 010 160 S06 | 45° 45° Helix Rib Endmills | 3AHMC 010 160 S06 / K ALUMINUM | ₩55,430 | Inquiry |
| 3AHMC 015 030 S06 | 45° 45° Helix Rib Endmills | 3AHMC 015 030 S06 / K ALUMINUM | ₩43,810 | Inquiry |
| 3AHMC 015 060 S06 | 45° 45° Helix Rib Endmills | 3AHMC 015 060 S06 / K ALUMINUM | ₩49,010 | Inquiry |
| 3AHMC 015 080 S06 | 45° 45° Helix Rib Endmills | 3AHMC 015 080 S06 / K ALUMINUM | ₩49,010 | Inquiry |
| 3AHMC 015 100 S06 | 45° 45° Helix Rib Endmills | 3AHMC 015 100 S06 / K ALUMINUM | ₩49,010 | Inquiry |
| 3AHMC 015 120 S06 | 45° 45° Helix Rib Endmills | 3AHMC 015 120 S06 / K ALUMINUM | ₩50,230 | Inquiry |
| 3AHMC 015 140 S06 | 45° 45° Helix Rib Endmills | 3AHMC 015 140 S06 / K ALUMINUM | ₩50,230 | Inquiry |
| 3AHMC 015 160 S06 | 45° 45° Helix Rib Endmills | 3AHMC 015 160 S06 / K ALUMINUM | ₩50,230 | Inquiry |
| 3AHMC 015 180 S06 | 45° 45° Helix Rib Endmills | 3AHMC 015 180 S06 / K ALUMINUM | ₩55,430 | Inquiry |
| 3AHMC 015 200 S06 | 45° 45° Helix Rib Endmills | 3AHMC 015 200 S06 / K ALUMINUM | ₩55,430 | Inquiry |
| 3AHMC 020 040 S06 | 45° 45° Helix Rib Endmills | 3AHMC 020 040 S06 / K ALUMINUM | ₩43,810 | Inquiry |
| 3AHMC 020 080 S06 | 45° 45° Helix Rib Endmills | 3AHMC 020 080 S06 / K ALUMINUM | ₩49,010 | Inquiry |
| 3AHMC 020 100 S06 | 45° 45° Helix Rib Endmills | 3AHMC 020 100 S06 / K ALUMINUM | ₩49,010 | Inquiry |
| 3AHMC 020 120 S06 | 45° 45° Helix Rib Endmills | 3AHMC 020 120 S06 / K ALUMINUM | ₩49,010 | Inquiry |
| 3AHMC 020 140 S06 | 45° 45° Helix Rib Endmills | 3AHMC 020 140 S06 / K ALUMINUM | ₩50,230 | Inquiry |
| 3AHMC 020 160 S06 | 45° 45° Helix Rib Endmills | 3AHMC 020 160 S06 / K ALUMINUM | ₩50,230 | Inquiry |
| 3AHMC 020 200 S06 | 45° 45° Helix Rib Endmills | 3AHMC 020 200 S06 / K ALUMINUM | ₩50,230 | Inquiry |
| 3AHMC 020 220 S06 | 45° 45° Helix Rib Endmills | 3AHMC 020 220 S06 / K ALUMINUM | ₩55,430 | Inquiry |
| 3AHMC 020 250 S06 | 45° 45° Helix Rib Endmills | 3AHMC 020 250 S06 / K ALUMINUM | ₩59,150 | Inquiry |
| 3AHMC 025 050 S06 | 45° 45° Helix Rib Endmills | 3AHMC 025 050 S06 / K ALUMINUM | ₩43,810 | Inquiry |
| 3AHMC 025 100 S06 | 45° 45° Helix Rib Endmills | 3AHMC 025 100 S06 / K ALUMINUM | ₩49,010 | Inquiry |
| 3AHMC 025 150 S06 | 45° 45° Helix Rib Endmills | 3AHMC 025 150 S06 / K ALUMINUM | ₩49,010 | Inquiry |
| 3AHMC 025 200 S06 | 45° 45° Helix Rib Endmills | 3AHMC 025 200 S06 / K ALUMINUM | ₩53,630 | Inquiry |
| 3AHMC 025 250 S06 | 45° 45° Helix Rib Endmills | 3AHMC 025 250 S06 / K ALUMINUM | ₩55,100 | Inquiry |
| 3AHMC 025 300 S06 | 45° 45° Helix Rib Endmills | 3AHMC 025 300 S06 / K ALUMINUM | ₩59,150 | Inquiry |
