All categories · 3AHM 025 150 S06
3AHM 025 150 S06
45° 45° Helix Rib Endmills
List price (excl. VAT)₩40,820
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.

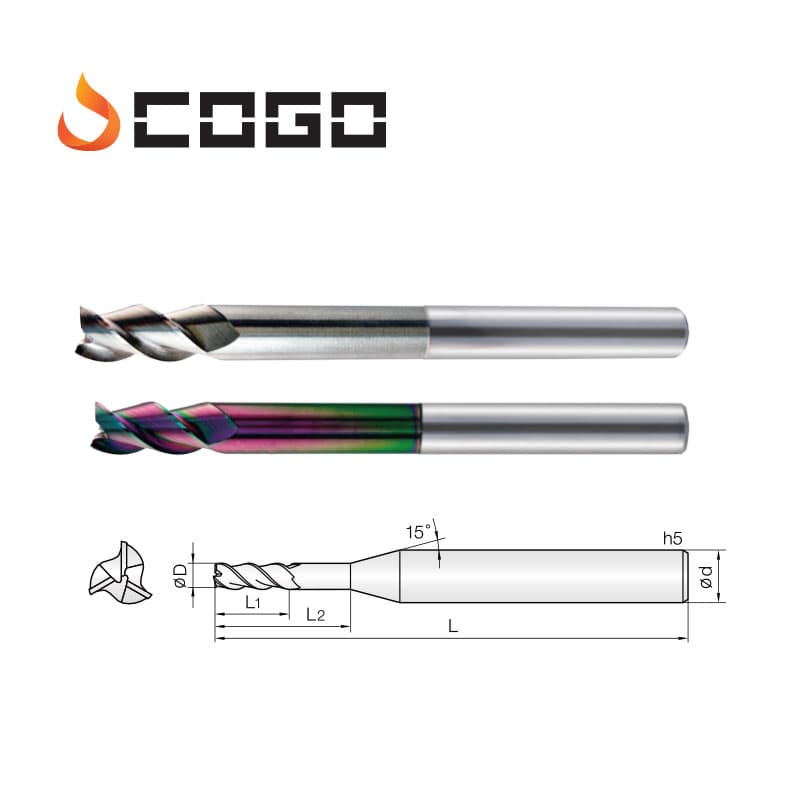

Catalog specifications
3AHM 025 150 S06
| Diameter Cutting-tip diameter (R = corner rounding) | Ø2.5 |
|---|---|
| Length of cut (l1) Length of the actual cutting edge | 5 mm |
| Effective length (l2) Usable reach (necked length) | 15 mm |
| Overall length (L) Total length of the tool | 60 mm |
| Shank dia (φd) Diameter of the shank held by the machine | 6 mm |
Substitute item (from ERP)
3ALR 025 150 S06 · 45˚ 헬릭스 리브 엔드밀When out of stock, the substitute item's stock can be used.
Items in the same group (click to switch)
| Code | Name | Spec | List price | Stock |
|---|---|---|---|---|
| 3AHM 008 016 S04 | 45° 45° Helix Rib Endmills | 3AHM 008 016 S04 / K ALUMINUM | ₩28,680 | Inquiry |
| 3AHM 008 030 S04 | 45° 45° Helix Rib Endmills | 3AHM 008 030 S04 / K ALUMINUM | ₩31,440 | Inquiry |
| 3AHM 008 040 S04 | 45° 45° Helix Rib Endmills | 3AHM 008 040 S04 / K ALUMINUM | ₩31,440 | Inquiry |
| 3AHM 008 050 S04 | 45° 45° Helix Rib Endmills | 3AHM 008 050 S04 / K ALUMINUM | ₩31,440 | Inquiry |
| 3AHM 008 060 S04 | 45° 45° Helix Rib Endmills | 3AHM 008 060 S04 / K ALUMINUM | ₩31,440 | Inquiry |
| 3AHM 008 080 S04 | 45° 45° Helix Rib Endmills | 3AHM 008 080 S04 / K ALUMINUM | ₩33,070 | Inquiry |
| 3AHM 008 100 S04 | 45° 45° Helix Rib Endmills | 3AHM 008 100 S04 / K ALUMINUM | ₩33,070 | Inquiry |
| 3AHM 008 120 S04 | 45° 45° Helix Rib Endmills | 3AHM 008 120 S04 / K ALUMINUM | ₩33,070 | Inquiry |
| 3AHM 010 020 S06 | 45° 45° Helix Rib Endmills | 3AHM 010 020 S06 / K ALUMINUM | ₩35,580 | Inquiry |
| 3AHM 010 040 S06 | 45° 45° Helix Rib Endmills | 3AHM 010 040 S06 / K ALUMINUM | ₩40,820 | Inquiry |
| 3AHM 010 060 S06 | 45° 45° Helix Rib Endmills | 3AHM 010 060 S06 / K ALUMINUM | ₩40,820 | Inquiry |
| 3AHM 010 080 S06 | 45° 45° Helix Rib Endmills | 3AHM 010 080 S06 / K ALUMINUM | ₩41,990 | Inquiry |
| 3AHM 010 100 S06 | 45° 45° Helix Rib Endmills | 3AHM 010 100 S06 / K ALUMINUM | ₩41,990 | Inquiry |
| 3AHM 010 120 S06 | 45° 45° Helix Rib Endmills | 3AHM 010 120 S06 / K ALUMINUM | ₩41,990 | Inquiry |
| 3AHM 010 140 S06 | 45° 45° Helix Rib Endmills | 3AHM 010 140 S06 / K ALUMINUM | ₩41,990 | Inquiry |
| 3AHM 010 160 S06 | 45° 45° Helix Rib Endmills | 3AHM 010 160 S06 / K ALUMINUM | ₩47,240 | Inquiry |
| 3AHM 010 180 S06 | 45° 45° Helix Rib Endmills | 3AHM 010 180 S06 / K ALUMINUM | ₩51,100 | Inquiry |
| 3AHM 010 200 S06 | 45° 45° Helix Rib Endmills | 3AHM 010 200 S06 / K ALUMINUM | ₩56,050 | Inquiry |
| 3AHM 015 030 S06 | 45° 45° Helix Rib Endmills | 3AHM 015 030 S06 / K ALUMINUM | ₩35,580 | Inquiry |
| 3AHM 015 060 S06 | 45° 45° Helix Rib Endmills | 3AHM 015 060 S06 / K ALUMINUM | ₩40,820 | Inquiry |
| 3AHM 015 080 S06 | 45° 45° Helix Rib Endmills | 3AHM 015 080 S06 / K ALUMINUM | ₩40,820 | Inquiry |
| 3AHM 015 100 S06 | 45° 45° Helix Rib Endmills | 3AHM 015 100 S06 / K ALUMINUM | ₩40,820 | Inquiry |
| 3AHM 015 120 S06 | 45° 45° Helix Rib Endmills | 3AHM 015 120 S06 / K ALUMINUM | ₩41,990 | Inquiry |
| 3AHM 015 140 S06 | 45° 45° Helix Rib Endmills | 3AHM 015 140 S06 / K ALUMINUM | ₩41,990 | Inquiry |
| 3AHM 015 160 S06 | 45° 45° Helix Rib Endmills | 3AHM 015 160 S06 / K ALUMINUM | ₩41,990 | Inquiry |
| 3AHM 015 180 S06 | 45° 45° Helix Rib Endmills | 3AHM 015 180 S06 / K ALUMINUM | ₩47,240 | Inquiry |
| 3AHM 015 200 S06 | 45° 45° Helix Rib Endmills | 3AHM 015 200 S06 / K ALUMINUM | ₩47,240 | Inquiry |
| 3AHM 015 220 S06 | 45° 45° Helix Rib Endmills | 3AHM 015 220 S06 / K ALUMINUM | ₩51,100 | Inquiry |
| 3AHM 015 250 S06 | 45° 45° Helix Rib Endmills | 3AHM 015 250 S06 / K ALUMINUM | ₩56,050 | Inquiry |
| 3AHM 020 040 S06 | 45° 45° Helix Rib Endmills | 3AHM 020 040 S06 / K ALUMINUM | ₩35,580 | Inquiry |
| 3AHM 020 080 S06 | 45° 45° Helix Rib Endmills | 3AHM 020 080 S06 / K ALUMINUM | ₩40,820 | Inquiry |
| 3AHM 020 100 S06 | 45° 45° Helix Rib Endmills | 3AHM 020 100 S06 / K ALUMINUM | ₩40,820 | Inquiry |
| 3AHM 020 120 S06 | 45° 45° Helix Rib Endmills | 3AHM 020 120 S06 / K ALUMINUM | ₩40,820 | Inquiry |
| 3AHM 020 140 S06 | 45° 45° Helix Rib Endmills | 3AHM 020 140 S06 / K ALUMINUM | ₩41,990 | Inquiry |
| 3AHM 020 160 S06 | 45° 45° Helix Rib Endmills | 3AHM 020 160 S06 / K ALUMINUM | ₩41,990 | Inquiry |
| 3AHM 020 200 S06 | 45° 45° Helix Rib Endmills | 3AHM 020 200 S06 / K ALUMINUM | ₩41,990 | Inquiry |
| 3AHM 020 220 S06 | 45° 45° Helix Rib Endmills | 3AHM 020 220 S06 / K ALUMINUM | ₩47,240 | Inquiry |
| 3AHM 020 250 S06 | 45° 45° Helix Rib Endmills | 3AHM 020 250 S06 / K ALUMINUM | ₩50,920 | Inquiry |
| 3AHM 020 280 S06 | 45° 45° Helix Rib Endmills | 3AHM 020 280 S06 / K ALUMINUM | ₩54,230 | Inquiry |
| 3AHM 020 300 S06 | 45° 45° Helix Rib Endmills | 3AHM 020 300 S06 / K ALUMINUM | ₩57,380 | Inquiry |
