All categories · 2VHN 006 070 335
2VHN 006 070 335
VHF
List price (excl. VAT)₩35,040
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Catalog specifications
2VHN 006 070 335

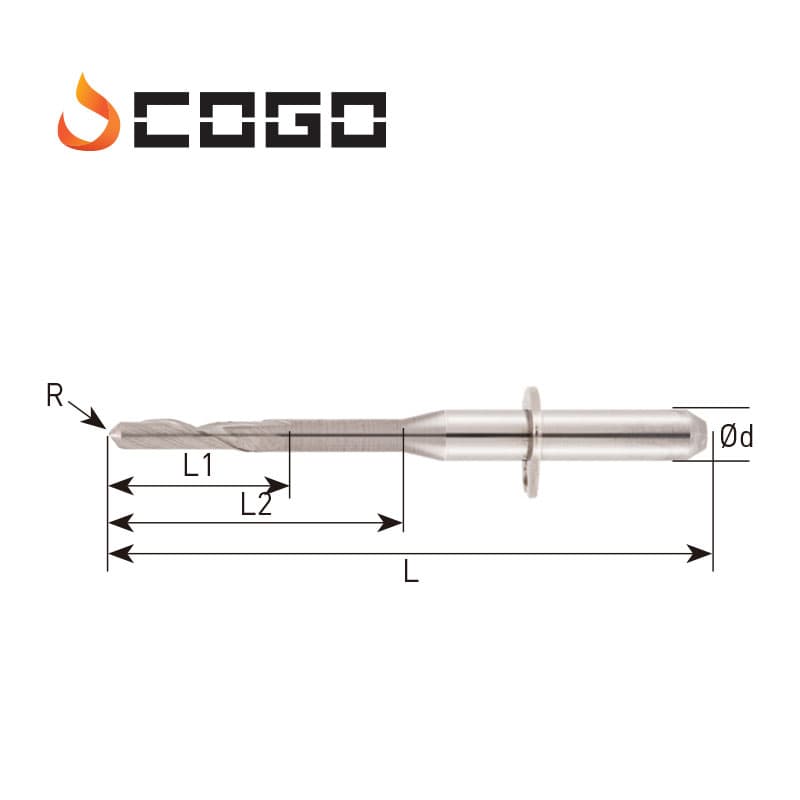

| Diameter Cutting-tip diameter (R = corner rounding) | Ø0.6 × R0.3 |
|---|---|
| Length of cut (l1) Length of the actual cutting edge | 2 mm |
| Effective length (l2) Usable reach (necked length) | 7 mm |
| Overall length (L) Total length of the tool | 35 mm |
| Shank dia (φd) Diameter of the shank held by the machine | 3 mm |
Items in the same group (click to switch)
| Code | Name | Spec | List price | Stock |
|---|---|---|---|---|
| 2VHN 006 030 335 | VHF | 2VHN 006 030 335 / K DENTAL | ₩35,040 | Inquiry |
| 2VHN 006 030 340 | VHF | 2VHN 006 030 340 / K DENTAL | ₩35,040 | Inquiry |
| 2VHN 006 070 335 | VHF | 2VHN 006 070 335 / K DENTAL | ₩35,040 | Inquiry |
| 2VHN 006 088 335 | VHF | 2VHN 006 088 335 / K DENTAL | ₩35,040 | Inquiry |
| 2VHN 006 088 340 | VHF | 2VHN 006 088 340 / K DENTAL | ₩35,520 | Inquiry |
| 2VHN 006 110 335 | VHF | 2VHN 006 110 335 / K DENTAL | ₩36,000 | Inquiry |
| 2VHN 010 130 335 | VHF | 2VHN 010 130 335 / K DENTAL | ₩30,800 | Inquiry |
| 2VHN 010 160 335 | VHF | 2VHN 010 160 335 / K DENTAL | ₩30,800 | Inquiry |
| 2VHN 010 160 340 | VHF | 2VHN 010 160 340 / K DENTAL | ₩35,800 | Inquiry |
| 2VHN 020 160 335 | VHF | 2VHN 020 160 335 / K DENTAL | ₩32,160 | Inquiry |
| 2VHN 020 160 340 | VHF | 2VHN 020 160 340 / K DENTAL | ₩32,160 | Inquiry |
| 2VHN 020 170 335 | VHF | 2VHN 020 170 335 / K DENTAL | ₩32,160 | Inquiry |
