Taper Endmills

2TEM 020 020 080

Taper Endmills
COGO · Milling Tools > Carbide End Mills > Taper
Spec: 2TEM 020 020 080 / K TAPER · Unit EA
List price (excl. VAT)₩39,140
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Log in

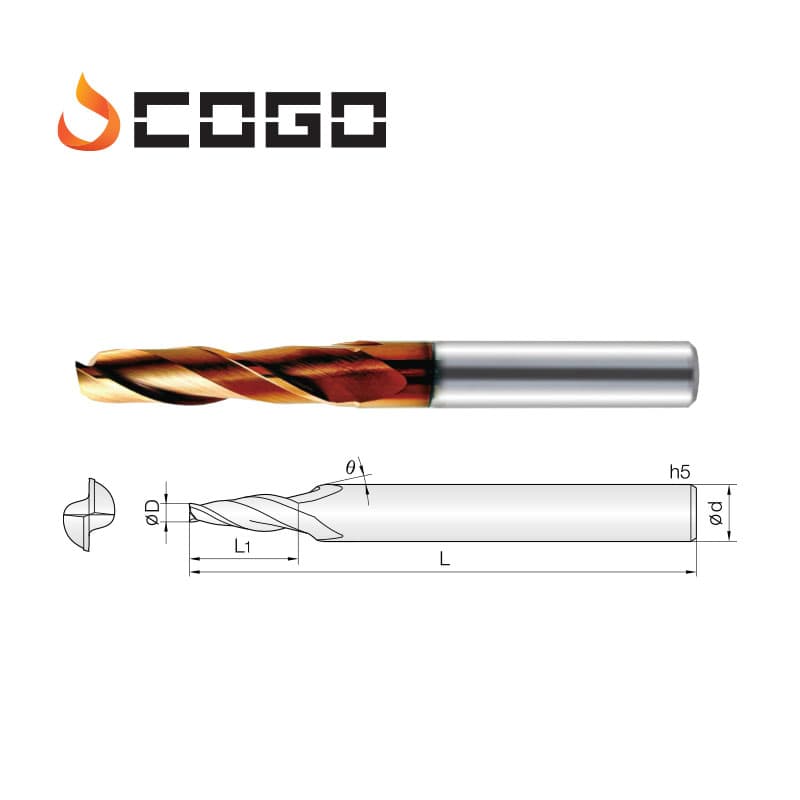

Catalog specifications
2TEM 020 020 080
Diameter
Cutting-tip diameter (R = corner rounding)
Ø2.0
Angle (θ)
Taper angle of the cutting part
2 °
Length of cut (l1)
Length of the actual cutting edge
8 mm
Overall length (L)
Total length of the tool
45 mm
Shank dia (φd)
Diameter of the shank held by the machine
4 mm
Substitute item (from ERP)
2CTE 020 020 080 · 테이퍼 엔드밀
When out of stock, the substitute item's stock can be used.
Items in the same group (click to switch)
CodeNameSpecList priceStock
2TEM 002 003 010Taper Endmills2TEM 002 003 010 / K TAPER₩40,570Inquiry
2TEM 002 010 010Taper Endmills2TEM 002 010 010 / K TAPER₩40,570Inquiry
2TEM 002 013 010Taper Endmills2TEM 002 013 010 / K TAPER₩40,570Inquiry
2TEM 002 020 010Taper Endmills2TEM 002 020 010 / K TAPER₩40,570Inquiry
2TEM 002 030 010Taper Endmills2TEM 002 030 010 / K TAPER₩40,570Inquiry
2TEM 002 050 010Taper Endmills2TEM 002 050 010 / K TAPER₩40,570Inquiry
2TEM 002 070 010Taper Endmills2TEM 002 070 010 / K TAPER₩40,570Inquiry
2TEM 002 100 010Taper Endmills2TEM 002 100 010 / K TAPER₩40,570Inquiry
2TEM 002 150 010Taper Endmills2TEM 002 150 010 / K TAPER₩40,570Inquiry
2TEM 003 003 012Taper Endmills2TEM 003 003 012 / K TAPER₩39,140Inquiry
2TEM 003 010 012Taper Endmills2TEM 003 010 012 / K TAPER₩39,140Inquiry
2TEM 003 013 012Taper Endmills2TEM 003 013 012 / K TAPER₩39,140Inquiry
2TEM 003 020 012Taper Endmills2TEM 003 020 012 / K TAPER₩39,140Inquiry
2TEM 003 030 012Taper Endmills2TEM 003 030 012 / K TAPER₩39,140Inquiry
2TEM 003 050 012Taper Endmills2TEM 003 050 012 / K TAPER₩39,140Inquiry
2TEM 003 060 015_SPECIALTaper Endmills2TEM 003 060 015_SPECIAL / K TAPERAsk for priceInquiry
2TEM 003 070 015Taper Endmills2TEM 003 070 015 / K TAPER₩39,140Inquiry
2TEM 003 100 015Taper Endmills2TEM 003 100 015 / K TAPER₩39,140Inquiry
2TEM 003 150 015Taper Endmills2TEM 003 150 015 / K TAPER₩39,140Inquiry
2TEM 004 003 016Taper Endmills2TEM 004 003 016 / K TAPER₩39,140Inquiry
2TEM 004 010 016Taper Endmills2TEM 004 010 016 / K TAPER₩39,140Inquiry
2TEM 004 013 016Taper Endmills2TEM 004 013 016 / K TAPER₩39,140Inquiry
2TEM 004 020 016Taper Endmills2TEM 004 020 016 / K TAPER₩39,140Inquiry
2TEM 004 030 016Taper Endmills2TEM 004 030 016 / K TAPER₩39,140Inquiry
2TEM 004 050 016Taper Endmills2TEM 004 050 016 / K TAPER₩39,140Inquiry
2TEM 004 070 020Taper Endmills2TEM 004 070 020 / K TAPER₩39,140Inquiry
2TEM 004 100 020Taper Endmills2TEM 004 100 020 / K TAPER₩39,140Inquiry
2TEM 004 150 020Taper Endmills2TEM 004 150 020 / K TAPER₩39,140Inquiry
2TEM 005 003 020Taper Endmills2TEM 005 003 020 / K TAPER₩39,140Inquiry
2TEM 005 010 020Taper Endmills2TEM 005 010 020 / K TAPER₩39,140Inquiry
2TEM 005 013 020Taper Endmills2TEM 005 013 020 / K TAPER₩39,140Inquiry
2TEM 005 020 020Taper Endmills2TEM 005 020 020 / K TAPER₩39,140Inquiry
2TEM 005 030 020Taper Endmills2TEM 005 030 020 / K TAPER₩39,140Inquiry
2TEM 005 050 020Taper Endmills2TEM 005 050 020 / K TAPER₩39,140Inquiry
2TEM 005 070 025Taper Endmills2TEM 005 070 025 / K TAPER₩39,140Inquiry
2TEM 005 100 025Taper Endmills2TEM 005 100 025 / K TAPER₩39,140Inquiry
2TEM 005 150 025Taper Endmills2TEM 005 150 025 / K TAPER₩39,140Inquiry
2TEM 005 200 025Taper Endmills2TEM 005 200 025 / K TAPER₩39,140Inquiry
2TEM 006 003 020Taper Endmills2TEM 006 003 020 / K TAPER₩39,140Inquiry
2TEM 006 010 020Taper Endmills2TEM 006 010 020 / K TAPER₩39,140Inquiry
