All categories · 2TBM 040 013 160
Taper Ball Endmills

2TBM 040 013 160

Taper Ball Endmills
COGO · Milling Tools > Carbide End Mills > Ball
Spec: 2TBM 040 013 160 / K TAPER · Unit EA
List price (excl. VAT)₩81,830
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Log in

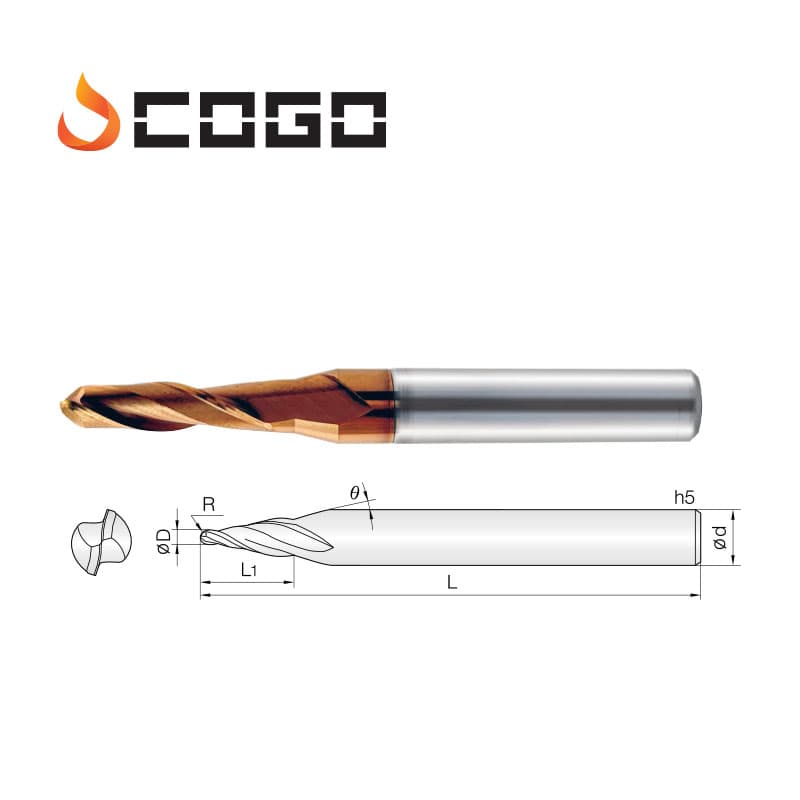

Catalog specifications
2TBM 040 013 160
Diameter
Cutting-tip diameter (R = corner rounding)
Ø2.0
Angle (θ)
Taper angle of the cutting part
1 °
Length of cut (l1)
Length of the actual cutting edge
16 mm
Overall length (L)
Total length of the tool
70 mm
Shank dia (φd)
Diameter of the shank held by the machine
8 mm
Items in the same group (click to switch)
CodeNameSpecList priceStock
2TBM 002 010 015Taper Ball Endmills2TBM 002 010 015 / K TAPER₩52,830Inquiry
2TBM 002 020 015Taper Ball Endmills2TBM 002 020 015 / K TAPER₩52,830Inquiry
2TBM 002 030 015Taper Ball Endmills2TBM 002 030 015 / K TAPER₩52,830Inquiry
2TBM 002 050 015Taper Ball Endmills2TBM 002 050 015 / K TAPER₩52,830Inquiry
2TBM 002 070 015Taper Ball Endmills2TBM 002 070 015 / K TAPER₩52,830Inquiry
2TBM 002 100 015Taper Ball Endmills2TBM 002 100 015 / K TAPER₩52,830Inquiry
2TBM 003 010 020Taper Ball Endmills2TBM 003 010 020 / K TAPER₩52,830Inquiry
2TBM 003 020 020Taper Ball Endmills2TBM 003 020 020 / K TAPER₩52,830Inquiry
2TBM 003 030 020Taper Ball Endmills2TBM 003 030 020 / K TAPER₩52,830Inquiry
2TBM 003 050 020Taper Ball Endmills2TBM 003 050 020 / K TAPER₩52,830Inquiry
2TBM 003 070 020Taper Ball Endmills2TBM 003 070 020 / K TAPER₩52,830Inquiry
2TBM 003 100 020Taper Ball Endmills2TBM 003 100 020 / K TAPER₩52,830Inquiry
2TBM 003 150 020Taper Ball Endmills2TBM 003 150 020 / K TAPER₩52,830Inquiry
2TBM 004 010 030Taper Ball Endmills2TBM 004 010 030 / K TAPER₩52,830Inquiry
2TBM 004 020 030Taper Ball Endmills2TBM 004 020 030 / K TAPER₩46,500Inquiry
2TBM 004 030 030Taper Ball Endmills2TBM 004 030 030 / K TAPER₩46,500Inquiry
2TBM 004 040 030Taper Ball Endmills2TBM 004 040 030 / K TAPER₩46,500Inquiry
2TBM 004 050 030Taper Ball Endmills2TBM 004 050 030 / K TAPER₩46,500Inquiry
2TBM 004 070 030Taper Ball Endmills2TBM 004 070 030 / K TAPER₩46,500Inquiry
2TBM 004 100 030Taper Ball Endmills2TBM 004 100 030 / K TAPER₩46,500Inquiry
2TBM 004 150 030Taper Ball Endmills2TBM 004 150 030 / K TAPER₩46,500Inquiry
2TBM 005 010 030Taper Ball Endmills2TBM 005 010 030 / K TAPER₩46,500Inquiry
2TBM 005 020 030Taper Ball Endmills2TBM 005 020 030 / K TAPER₩46,500Inquiry
2TBM 005 030 030Taper Ball Endmills2TBM 005 030 030 / K TAPER₩46,500Inquiry
2TBM 005 040 035Taper Ball Endmills2TBM 005 040 035 / K TAPER₩46,500Inquiry
2TBM 005 050 035Taper Ball Endmills2TBM 005 050 035 / K TAPER₩46,500Inquiry
2TBM 005 070 035Taper Ball Endmills2TBM 005 070 035 / K TAPER₩46,500Inquiry
2TBM 005 100 035Taper Ball Endmills2TBM 005 100 035 / K TAPER₩46,500Inquiry
2TBM 005 150 035Taper Ball Endmills2TBM 005 150 035 / K TAPER₩46,500Inquiry
2TBM 006 010 030Taper Ball Endmills2TBM 006 010 030 / K TAPER₩46,500Inquiry
2TBM 006 020 030Taper Ball Endmills2TBM 006 020 030 / K TAPER₩46,500Inquiry
2TBM 006 030 030Taper Ball Endmills2TBM 006 030 030 / K TAPER₩46,500Inquiry
2TBM 006 040 035Taper Ball Endmills2TBM 006 040 035 / K TAPER₩46,500Inquiry
2TBM 006 050 035Taper Ball Endmills2TBM 006 050 035 / K TAPER₩46,500Inquiry
2TBM 006 070 035Taper Ball Endmills2TBM 006 070 035 / K TAPER₩46,500Inquiry
2TBM 006 100 035Taper Ball Endmills2TBM 006 100 035 / K TAPER₩46,500Inquiry
2TBM 006 150 035Taper Ball Endmills2TBM 006 150 035 / K TAPER₩46,500Inquiry
2TBM 006 150 035Taper Ball Endmills2TBM 006 150 035 / K TAPER₩46,500Inquiry
2TBM 007 010 030Taper Ball Endmills2TBM 007 010 030 / K TAPER₩46,500Inquiry
2TBM 007 020 030Taper Ball Endmills2TBM 007 020 030 / K TAPER₩46,500Inquiry
