All categories · 2SRB 020 180 S06
Rib Ball Endmills

2SRB 020 180 S06

Rib Ball Endmills
COGO · Milling Tools > Carbide End Mills > Ball
Spec: 2SRB 020 180 S06 / K SPEED · Unit EA
List price (excl. VAT)₩43,030
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Log in

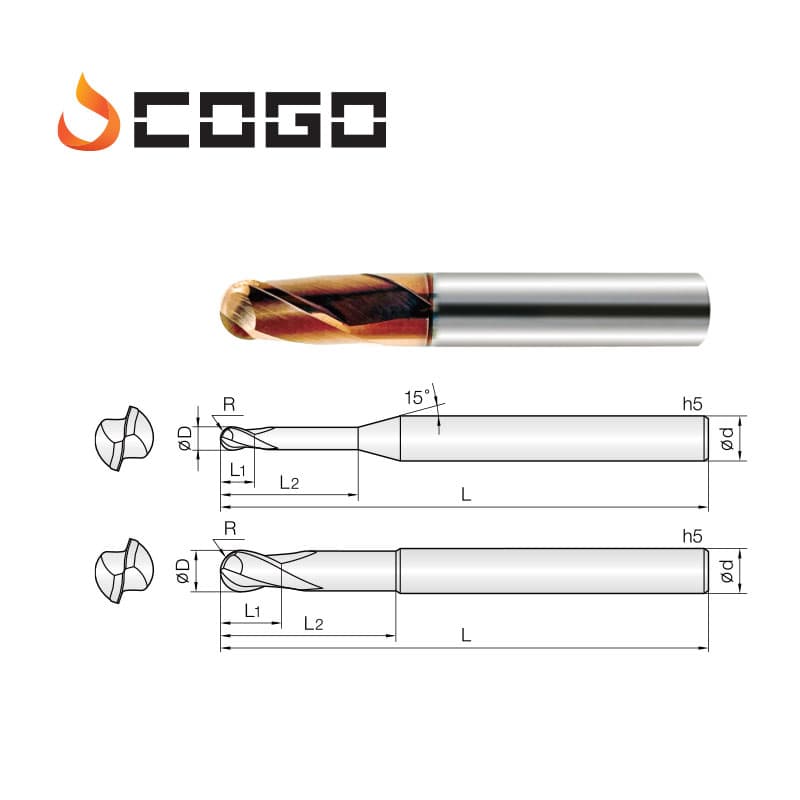

Catalog specifications
2SRB 020 180 S06
Diameter
Cutting-tip diameter (R = corner rounding)
Ø1.0
Length of cut (l1)
Length of the actual cutting edge
2 mm
Effective length (l2)
Usable reach (necked length)
18 mm
Overall length (L)
Total length of the tool
60 mm
Shank dia (φd)
Diameter of the shank held by the machine
6 mm
Substitute item (from ERP)
2HRB 020 180 S06 · 리브 볼 엔드밀
When out of stock, the substitute item's stock can be used.
Items in the same group (click to switch)
CodeNameSpecList priceStock
2SRB 001 003 S04Rib Ball Endmills2SRB 001 003 S04 / K SPEED₩72,310Inquiry
2SRB 001 005 S04Rib Ball Endmills2SRB 001 005 S04 / K SPEED₩72,310Inquiry
2SRB 0015 003 S04Rib Ball Endmills2SRB 0015 003 S04 / K SPEED₩69,690Inquiry
2SRB 0015 005 S04Rib Ball Endmills2SRB 0015 005 S04 / K SPEED₩69,690Inquiry
2SRB 0015 010 S04Rib Ball Endmills2SRB 0015 010 S04 / K SPEED₩83,810Inquiry
2SRB 002 005 S04Rib Ball Endmills2SRB 002 005 S04 / K SPEED₩45,630Inquiry
2SRB 002 010 S04Rib Ball Endmills2SRB 002 010 S04 / K SPEED₩45,630Inquiry
2SRB 002 015 S04Rib Ball Endmills2SRB 002 015 S04 / K SPEED₩45,630Inquiry
2SRB 002 020 S04Rib Ball Endmills2SRB 002 020 S04 / K SPEED₩45,630Inquiry
2SRB 002 025 S04Rib Ball Endmills2SRB 002 025 S04 / K SPEED₩48,550Inquiry
2SRB 002 030 S04Rib Ball Endmills2SRB 002 030 S04 / K SPEED₩48,550Inquiry
2SRB 0025 005 S04Rib Ball Endmills2SRB 0025 005 S04 / K SPEED₩44,220Inquiry
2SRB 0025 010 S04Rib Ball Endmills2SRB 0025 010 S04 / K SPEED₩44,220Inquiry
2SRB 0025 015 S04Rib Ball Endmills2SRB 0025 015 S04 / K SPEED₩44,220Inquiry
2SRB 0025 020 S04Rib Ball Endmills2SRB 0025 020 S04 / K SPEED₩44,220Inquiry
2SRB 0025 025 S04Rib Ball Endmills2SRB 0025 025 S04 / K SPEED₩48,020Inquiry
2SRB 0025 030 S04Rib Ball Endmills2SRB 0025 030 S04 / K SPEED₩48,020Inquiry
2SRB 003 010 S04Rib Ball Endmills2SRB 003 010 S04 / K SPEED₩42,960Inquiry
2SRB 003 015 S04Rib Ball Endmills2SRB 003 015 S04 / K SPEED₩42,960Inquiry
2SRB 003 020 S04Rib Ball Endmills2SRB 003 020 S04 / K SPEED₩42,960Inquiry
2SRB 003 025 S04Rib Ball Endmills2SRB 003 025 S04 / K SPEED₩42,960Inquiry
2SRB 003 030 S04Rib Ball Endmills2SRB 003 030 S04 / K SPEED₩42,960Inquiry
2SRB 003 035 S04Rib Ball Endmills2SRB 003 035 S04 / K SPEED₩47,510Inquiry
2SRB 003 040 S04Rib Ball Endmills2SRB 003 040 S04 / K SPEED₩50,320Inquiry
2SRB 003 050 S04Rib Ball Endmills2SRB 003 050 S04 / K SPEED₩50,320Inquiry
2SRB 004 010 S04Rib Ball Endmills2SRB 004 010 S04 / K SPEED₩41,350Inquiry
2SRB 004 015 S04Rib Ball Endmills2SRB 004 015 S04 / K SPEED₩41,350Inquiry
2SRB 004 020 S04Rib Ball Endmills2SRB 004 020 S04 / K SPEED₩41,350Inquiry
2SRB 004 025 S04Rib Ball Endmills2SRB 004 025 S04 / K SPEED₩41,350Inquiry
2SRB 004 030 S04Rib Ball Endmills2SRB 004 030 S04 / K SPEED₩41,350Inquiry
2SRB 004 035 S04Rib Ball Endmills2SRB 004 035 S04 / K SPEED₩41,350Inquiry
2SRB 004 040 S04Rib Ball Endmills2SRB 004 040 S04 / K SPEED₩41,350Inquiry
2SRB 004 045 S04Rib Ball Endmills2SRB 004 045 S04 / K SPEED₩41,350Inquiry
2SRB 004 050 S04Rib Ball Endmills2SRB 004 050 S04 / K SPEED₩41,350Inquiry
2SRB 004 060 S04Rib Ball Endmills2SRB 004 060 S04 / K SPEED₩41,350Inquiry
2SRB 004 080 S04Rib Ball Endmills2SRB 004 080 S04 / K SPEED₩41,350Inquiry
2SRB 004 100 S04Rib Ball Endmills2SRB 004 100 S04 / K SPEED₩48,180Inquiry
2SRB 005 010 S04Rib Ball Endmills2SRB 005 010 S04 / K SPEED₩37,760Inquiry
2SRB 005 015 S04Rib Ball Endmills2SRB 005 015 S04 / K SPEED₩37,760Inquiry
2SRB 005 020 S04Rib Ball Endmills2SRB 005 020 S04 / K SPEED₩37,760Inquiry
