All categories · 2NRB 020 140 S04
Micro Rib Ball End Mills

2NRB 020 140 S04

Micro Rib Ball End Mills
COGO · Milling Tools > Carbide End Mills > Ball
Spec: 2NRB 020 140 S04 / K ABS · Unit EA
List price (excl. VAT)₩26,650
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Log in

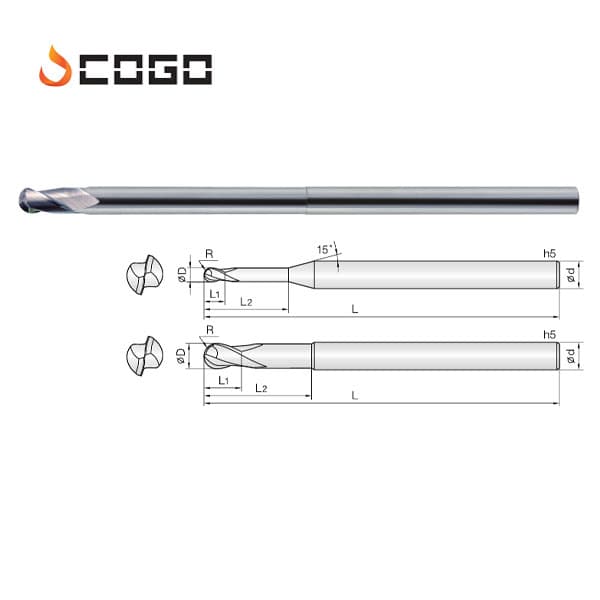

Catalog specifications
2NRB 020 140 S04
Diameter
Cutting-tip diameter (R = corner rounding)
Ø1.0
Length of cut (l1)
Length of the actual cutting edge
4 mm
Effective length (l2)
Usable reach (necked length)
14 mm
Overall length (L)
Total length of the tool
50 mm
Shank dia (φd)
Diameter of the shank held by the machine
4 mm
Items in the same group (click to switch)
CodeNameSpecList priceStock
2NRB 002 005 S04Micro Rib Ball End Mills2NRB 002 005 S04 / K ABS₩37,920Inquiry
2NRB 002 010 S04Micro Rib Ball End Mills2NRB 002 010 S04 / K ABS₩37,920Inquiry
2NRB 002 015 S04Micro Rib Ball End Mills2NRB 002 015 S04 / K ABS₩37,920Inquiry
2NRB 002 020 S04Micro Rib Ball End Mills2NRB 002 020 S04 / K ABS₩39,920Inquiry
2NRB 003 010 S04Micro Rib Ball End Mills2NRB 003 010 S04 / K ABS₩35,140Inquiry
2NRB 003 020 S04Micro Rib Ball End Mills2NRB 003 020 S04 / K ABS₩35,140Inquiry
2NRB 003 030 S04Micro Rib Ball End Mills2NRB 003 030 S04 / K ABS₩35,140Inquiry
2NRB 003 050 S04Micro Rib Ball End Mills2NRB 003 050 S04 / K ABS₩42,060Inquiry
2NRB 004 020 S04Micro Rib Ball End Mills2NRB 004 020 S04 / K ABS₩35,140Inquiry
2NRB 004 030 S04Micro Rib Ball End Mills2NRB 004 030 S04 / K ABS₩35,140Inquiry
2NRB 004 040 S04Micro Rib Ball End Mills2NRB 004 040 S04 / K ABS₩35,140Inquiry
2NRB 004 050 S04Micro Rib Ball End Mills2NRB 004 050 S04 / K ABS₩35,140Inquiry
2NRB 004 060 S04Micro Rib Ball End Mills2NRB 004 060 S04 / K ABS₩35,140Inquiry
2NRB 005 020 S04Micro Rib Ball End Mills2NRB 005 020 S04 / K ABS₩31,600Inquiry
2NRB 005 040 S04Micro Rib Ball End Mills2NRB 005 040 S04 / K ABS₩31,600Inquiry
2NRB 005 060 S04Micro Rib Ball End Mills2NRB 005 060 S04 / K ABS₩31,600Inquiry
2NRB 005 080 S04Micro Rib Ball End Mills2NRB 005 080 S04 / K ABS₩31,600Inquiry
2NRB 005 100 S04Micro Rib Ball End Mills2NRB 005 100 S04 / K ABS₩36,400Inquiry
2NRB 006 020 S04Micro Rib Ball End Mills2NRB 006 020 S04 / K ABS₩31,600Inquiry
2NRB 006 040 S04Micro Rib Ball End Mills2NRB 006 040 S04 / K ABS₩31,600Inquiry
2NRB 006 060 S04Micro Rib Ball End Mills2NRB 006 060 S04 / K ABS₩31,600Inquiry
2NRB 006 080 S04Micro Rib Ball End Mills2NRB 006 080 S04 / K ABS₩31,600Inquiry
2NRB 006 100 S04Micro Rib Ball End Mills2NRB 006 100 S04 / K ABS₩36,400Inquiry
2NRB 007 040 S04Micro Rib Ball End Mills2NRB 007 040 S04 / K ABS₩30,170Inquiry
2NRB 007 060 S04Micro Rib Ball End Mills2NRB 007 060 S04 / K ABS₩30,170Inquiry
2NRB 007 080 S04Micro Rib Ball End Mills2NRB 007 080 S04 / K ABS₩30,170Inquiry
2NRB 007 100 S04Micro Rib Ball End Mills2NRB 007 100 S04 / K ABS₩35,000Inquiry
2NRB 008 040 S04Micro Rib Ball End Mills2NRB 008 040 S04 / K ABS₩30,170Inquiry
2NRB 008 060 S04Micro Rib Ball End Mills2NRB 008 060 S04 / K ABS₩30,170Inquiry
2NRB 008 080 S04Micro Rib Ball End Mills2NRB 008 080 S04 / K ABS₩30,170Inquiry
2NRB 008 100 S04Micro Rib Ball End Mills2NRB 008 100 S04 / K ABS₩30,170Inquiry
2NRB 008 120 S04Micro Rib Ball End Mills2NRB 008 120 S04 / K ABS₩35,000Inquiry
2NRB 009 060 S04Micro Rib Ball End Mills2NRB 009 060 S04 / K ABS₩30,170Inquiry
2NRB 009 100 S04Micro Rib Ball End Mills2NRB 009 100 S04 / K ABS₩30,170Inquiry
2NRB 009 120 S04Micro Rib Ball End Mills2NRB 009 120 S04 / K ABS₩30,170Inquiry
2NRB 010 060 S04Micro Rib Ball End Mills2NRB 010 060 S04 / K ABS₩26,650Inquiry
2NRB 010 080 S04Micro Rib Ball End Mills2NRB 010 080 S04 / K ABS₩26,650Inquiry
2NRB 010 100 S04Micro Rib Ball End Mills2NRB 010 100 S04 / K ABS₩28,540Inquiry
2NRB 010 120 S04Micro Rib Ball End Mills2NRB 010 120 S04 / K ABS₩28,540Inquiry
2NRB 010 160 S04Micro Rib Ball End Mills2NRB 010 160 S04 / K ABS₩28,540Inquiry
