All categories · 2NPO 160 090 110
NC NC spotting Drill

2NPO 160 090 110

NC NC spotting Drill
COGO · Hole Making > Carbide Drills > Centre & Spot
Spec: 2NPO 160 090 110 / K DRILL · Unit EA
List price (excl. VAT)₩233,740
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Log in

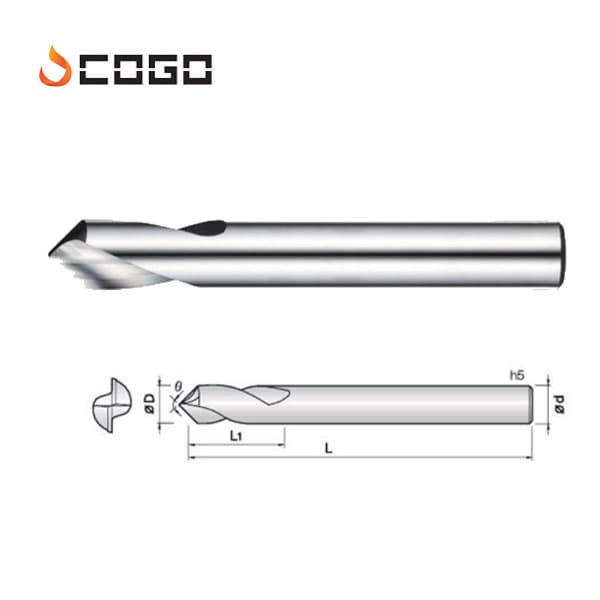

Catalog specifications
2NPO 160 090 110
Diameter
Cutting-tip diameter (R = corner rounding)
Ø16.0
Angle (θ)
Taper angle of the cutting part
90 °
Length of cut (l1)
Length of the actual cutting edge
35 mm
Overall length (L)
Total length of the tool
110 mm
Shank dia (φd)
Diameter of the shank held by the machine
16 mm
Substitute item (from ERP)
2SPO 160 090 110 · NC
When out of stock, the substitute item's stock can be used.
Items in the same group (click to switch)
CodeNameSpecList priceStock
2NPO 003 090 040NC NC spotting Drill2NPO 003 090 040 / K DRILL₩28,450Inquiry
2NPO 005 090 040NC NC spotting Drill2NPO 005 090 040 / K DRILL₩27,140Inquiry
2NPO 008 090 040NC NC spotting Drill2NPO 008 090 040 / K DRILL₩25,870Inquiry
2NPO 010 090 050NC NC spotting Drill2NPO 010 090 050 / K DRILL₩22,720Inquiry
2NPO 010 120 050NC NC spotting Drill2NPO 010 120 050 / K DRILL₩22,720Inquiry
2NPO 015 090 050NC NC spotting Drill2NPO 015 090 050 / K DRILL₩22,720Inquiry
2NPO 020 090 050NC NC spotting Drill2NPO 020 090 050 / K DRILL₩22,720Inquiry
2NPO 020 120 050NC NC spotting Drill2NPO 020 120 050 / K DRILL₩22,720Inquiry
2NPO 030 090 050NC NC spotting Drill2NPO 030 090 050 / K DRILL₩22,720Inquiry
2NPO 030 090 100NC NC spotting Drill2NPO 030 090 100 / K DRILL₩29,570Inquiry
2NPO 030 120 050NC NC spotting Drill2NPO 030 120 050 / K DRILL₩22,720Inquiry
2NPO 030 120 100NC NC spotting Drill2NPO 030 120 100 / K DRILL₩29,570Inquiry
2NPO 040 090 050NC NC spotting Drill2NPO 040 090 050 / K DRILL₩22,720Inquiry
2NPO 040 090 100NC NC spotting Drill2NPO 040 090 100 / K DRILL₩29,570Inquiry
2NPO 040 120 050NC NC spotting Drill2NPO 040 120 050 / K DRILL₩22,720Inquiry
2NPO 040 120 100NC NC spotting Drill2NPO 040 120 100 / K DRILL₩29,570Inquiry
2NPO 060 090 070NC NC spotting Drill2NPO 060 090 070 / K DRILL₩31,410Inquiry
2NPO 060 090 110NC NC spotting Drill2NPO 060 090 110 / K DRILL₩40,820Inquiry
2NPO 060 120 070NC NC spotting Drill2NPO 060 120 070 / K DRILL₩31,410Inquiry
2NPO 060 120 110NC NC spotting Drill2NPO 060 120 110 / K DRILL₩40,820Inquiry
2NPO 080 090 080NC NC spotting Drill2NPO 080 090 080 / K DRILL₩56,710Inquiry
2NPO 080 120 080NC NC spotting Drill2NPO 080 120 080 / K DRILL₩56,710Inquiry
2NPO 100 090 090NC NC spotting Drill2NPO 100 090 090 / K DRILL₩90,040Inquiry
2NPO 100 090 150NC NC spotting Drill2NPO 100 090 150 / K DRILL₩147,540Inquiry
2NPO 100 120 090NC NC spotting Drill2NPO 100 120 090 / K DRILL₩90,040Inquiry
2NPO 100 120 150NC NC spotting Drill2NPO 100 120 150 / K DRILL₩147,540Inquiry
2NPO 120 090 090NC NC spotting Drill2NPO 120 090 090 / K DRILL₩125,990Inquiry
2NPO 120 090 150NC NC spotting Drill2NPO 120 090 150 / K DRILL₩188,270Inquiry
2NPO 120 120 090NC NC spotting Drill2NPO 120 120 090 / K DRILL₩125,990Inquiry
2NPO 120 120 150NC NC spotting Drill2NPO 120 120 150 / K DRILL₩188,270Inquiry
2NPO 160 090 110NC NC spotting Drill2NPO 160 090 110 / K DRILL₩233,740Inquiry
2NPO 160 120 110NC NC spotting Drill2NPO 160 120 110 / K DRILL₩233,740Inquiry
