All categories · 2NEM 0015 003 S03
Endmills

2NEM 0015 003 S03

Endmills
COGO · Milling Tools > Carbide End Mills > Other / Unclassified
Spec: 2NEM 0015 003 S03 / K ABS · Unit EA
List price (excl. VAT)₩39,810
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Log in

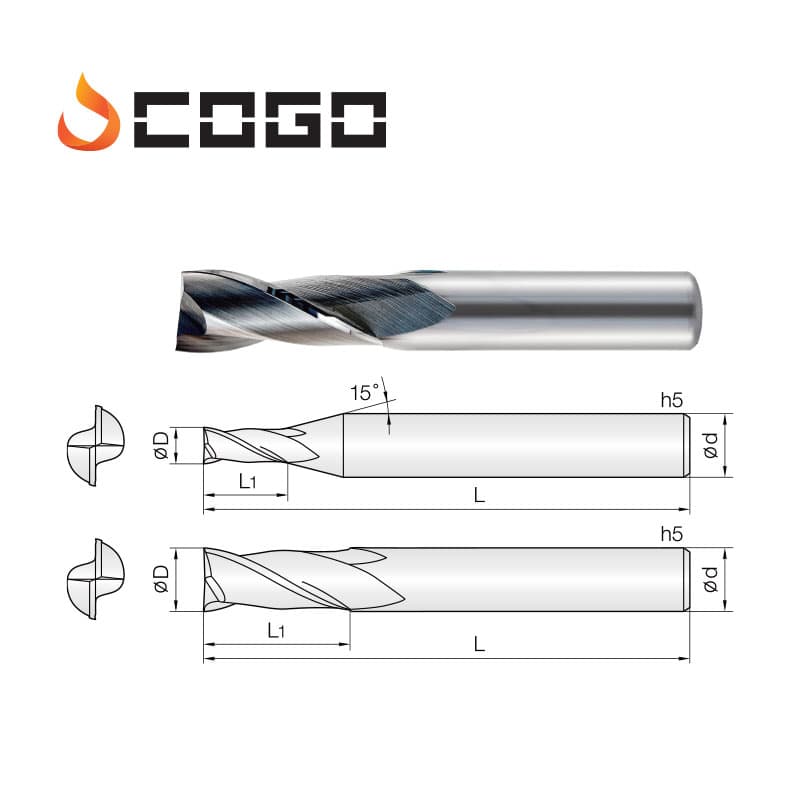

Catalog specifications
2NEM 0015 003 S03
Diameter
Cutting-tip diameter (R = corner rounding)
Ø0.15
Length of cut (l1)
Length of the actual cutting edge
0.3 mm
Overall length (L)
Total length of the tool
40 mm
Shank dia (φd)
Diameter of the shank held by the machine
3 mm
Substitute item (from ERP)
2MEM 0015 003 S03 · 범용 엔드밀
When out of stock, the substitute item's stock can be used.
Items in the same group (click to switch)
CodeNameSpecList priceStock
2NEM 001 002 S03Endmills2NEM 001 002 S03 / K ABS₩42,570Inquiry
2NEM 0015 003 S03Endmills2NEM 0015 003 S03 / K ABS₩39,810Inquiry
2NEM 002 004 S03Endmills2NEM 002 004 S03 / K ABS₩29,440Inquiry
2NEM 003 006 S03Endmills2NEM 003 006 S03 / K ABS₩22,860Inquiry
2NEM 004 008 S03Endmills2NEM 004 008 S03 / K ABS₩22,860Inquiry
2NEM 005 010 S03Endmills2NEM 005 010 S03 / K ABS₩21,450Inquiry
2NEM 006 012 S03Endmills2NEM 006 012 S03 / K ABS₩21,450Inquiry
2NEM 007 014 S03Endmills2NEM 007 014 S03 / K ABS₩19,960Inquiry
2NEM 008 016 S03Endmills2NEM 008 016 S03 / K ABS₩19,960Inquiry
2NEM 009 018 S03Endmills2NEM 009 018 S03 / K ABS₩19,960Inquiry
2NEM 010 025 S03Endmills2NEM 010 025 S03 / K ABS₩16,140Inquiry
2NEM 010 025 S06Endmills2NEM 010 025 S06 / K ABS₩21,110Inquiry
2NEM 011 025 S03Endmills2NEM 011 025 S03 / K ABS₩16,140Inquiry
2NEM 012 035 S03Endmills2NEM 012 035 S03 / K ABS₩16,140Inquiry
2NEM 013 040 S03Endmills2NEM 013 040 S03 / K ABS₩16,140Inquiry
2NEM 014 040 S03Endmills2NEM 014 040 S03 / K ABS₩16,140Inquiry
2NEM 015 040 S03Endmills2NEM 015 040 S03 / K ABS₩16,140Inquiry
2NEM 015 040 S06Endmills2NEM 015 040 S06 / K ABS₩21,110Inquiry
2NEM 016 040 S03Endmills2NEM 016 040 S03 / K ABS₩16,140Inquiry
2NEM 017 050 S03Endmills2NEM 017 050 S03 / K ABS₩16,140Inquiry
2NEM 018 055 S03Endmills2NEM 018 055 S03 / K ABS₩16,140Inquiry
2NEM 019 060 S03Endmills2NEM 019 060 S03 / K ABS₩16,140Inquiry
2NEM 020 060 S03Endmills2NEM 020 060 S03 / K ABS₩16,140Inquiry
2NEM 020 060 S06Endmills2NEM 020 060 S06 / K ABS₩21,110Inquiry
2NEM 020 100 S06Endmills2NEM 020 100 S06 / K ABSAsk for priceInquiry
2NEM 025 080 S03Endmills2NEM 025 080 S03 / K ABS₩16,140Inquiry
2NEM 025 080 S06Endmills2NEM 025 080 S06 / K ABS₩21,110Inquiry
2NEM 030 080 S03Endmills2NEM 030 080 S03 / K ABS₩16,900Inquiry
2NEM 030 080 S06Endmills2NEM 030 080 S06 / K ABS₩22,330Inquiry
2NEM 035 100 S06Endmills2NEM 035 100 S06 / K ABS₩22,330Inquiry
2NEM 035 200 S06Endmills2NEM 035 200 S06 / K ABSAsk for priceInquiry
2NEM 040 110 S06Endmills2NEM 040 110 S06 / K ABS₩22,330Inquiry
2NEM 045 110 S06Endmills2NEM 045 110 S06 / K ABS₩26,030Inquiry
2NEM 045 200 S06Endmills2NEM 045 200 S06 / K ABSAsk for priceInquiry
2NEM 050 130 S06Endmills2NEM 050 130 S06 / K ABS₩26,030Inquiry
2NEM 060 130 S06Endmills2NEM 060 130 S06 / K ABS₩26,030Inquiry
2NEM 068 200 S08Endmills2NEM 068 200 S08 / K ABSAsk for priceInquiry
2NEM 070 160 S08Endmills2NEM 070 160 S08 / K ABS₩50,800Inquiry
2NEM 080 190 S08Endmills2NEM 080 190 S08 / K ABS₩45,080Inquiry
2NEM 080 350 S08Endmills2NEM 080 350 S08 / K ABSAsk for priceInquiry
