All categories · 2MFD 190 817 S20
Flat Drill

2MFD 190 817 S20

Flat Drill
COGO · Hole Making > Carbide Drills > Flat
Spec: 2MFD 190 817 S20 / K DRILL · Unit EA
List price (excl. VAT)₩584,770
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Log in

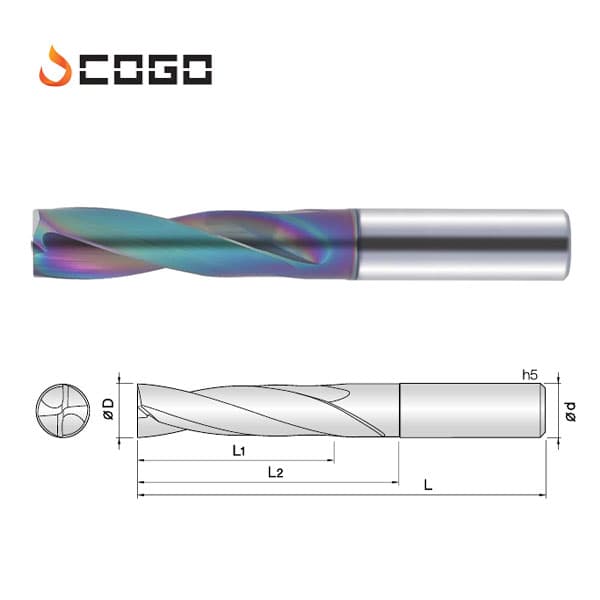

Catalog specifications
2MFD 190 817 S20
Diameter
Cutting-tip diameter (R = corner rounding)
Ø19.0
Length of cut (l1)
Length of the actual cutting edge
76 mm
Effective length (l2)
Usable reach (necked length)
81.7 mm
Overall length (L)
Total length of the tool
135 mm
Shank dia (φd)
Diameter of the shank held by the machine
20 mm
Items in the same group (click to switch)
CodeNameSpecList priceStock
2MFD 002 009 S03Flat Drill2MFD 002 009 S03 / K DRILL₩52,210Inquiry
2MFD 0025 011 S03Flat Drill2MFD 0025 011 S03 / K DRILL₩52,210Inquiry
2MFD 003 013 S03Flat Drill2MFD 003 013 S03 / K DRILL₩50,570Inquiry
2MFD 0035 015 S03Flat Drill2MFD 0035 015 S03 / K DRILL₩50,570Inquiry
2MFD 004 017 S03Flat Drill2MFD 004 017 S03 / K DRILL₩49,950Inquiry
2MFD 0045 019 S03Flat Drill2MFD 0045 019 S03 / K DRILL₩49,950Inquiry
2MFD 005 022 S03Flat Drill2MFD 005 022 S03 / K DRILL₩47,420Inquiry
2MFD 0055 024 S03Flat Drill2MFD 0055 024 S03 / K DRILL₩47,420Inquiry
2MFD 006 026 S03Flat Drill2MFD 006 026 S03 / K DRILL₩47,420Inquiry
2MFD 0065 028 S03Flat Drill2MFD 0065 028 S03 / K DRILL₩47,420Inquiry
2MFD 007 030 S03Flat Drill2MFD 007 030 S03 / K DRILL₩47,420Inquiry
2MFD 0075 032 S03Flat Drill2MFD 0075 032 S03 / K DRILL₩47,420Inquiry
2MFD 008 034 S03Flat Drill2MFD 008 034 S03 / K DRILL₩47,420Inquiry
2MFD 0085 037 S03Flat Drill2MFD 0085 037 S03 / K DRILL₩47,420Inquiry
2MFD 009 039 S03Flat Drill2MFD 009 039 S03 / K DRILL₩47,420Inquiry
2MFD 0095 041 S03Flat Drill2MFD 0095 041 S03 / K DRILL₩47,420Inquiry
2MFD 010 043 S03Flat Drill2MFD 010 043 S03 / K DRILL₩41,070Inquiry
2MFD 011 047 S03Flat Drill2MFD 011 047 S03 / K DRILL₩41,070Inquiry
2MFD 012 052 S03Flat Drill2MFD 012 052 S03 / K DRILL₩41,070Inquiry
2MFD 013 056 S03Flat Drill2MFD 013 056 S03 / K DRILL₩41,070Inquiry
2MFD 014 060 S03Flat Drill2MFD 014 060 S03 / K DRILL₩41,070Inquiry
2MFD 015 065 S03Flat Drill2MFD 015 065 S03 / K DRILL₩41,070Inquiry
2MFD 016 069 S03Flat Drill2MFD 016 069 S03 / K DRILL₩41,070Inquiry
2MFD 017 073 S03Flat Drill2MFD 017 073 S03 / K DRILL₩41,070Inquiry
2MFD 018 077 S03Flat Drill2MFD 018 077 S03 / K DRILL₩41,070Inquiry
2MFD 019 082 S03Flat Drill2MFD 019 082 S03 / K DRILL₩41,070Inquiry
2MFD 020 086 S04Flat Drill2MFD 020 086 S04 / K DRILL₩41,070Inquiry
2MFD 021 090 S04Flat Drill2MFD 021 090 S04 / K DRILL₩41,070Inquiry
2MFD 022 095 S04Flat Drill2MFD 022 095 S04 / K DRILL₩41,070Inquiry
2MFD 023 099 S04Flat Drill2MFD 023 099 S04 / K DRILL₩41,070Inquiry
2MFD 024 103 S04Flat Drill2MFD 024 103 S04 / K DRILL₩41,070Inquiry
2MFD 025 108 S04Flat Drill2MFD 025 108 S04 / K DRILL₩41,070Inquiry
2MFD 026 112 S04Flat Drill2MFD 026 112 S04 / K DRILL₩41,070Inquiry
2MFD 027 116 S04Flat Drill2MFD 027 116 S04 / K DRILL₩41,070Inquiry
2MFD 028 120 S04Flat Drill2MFD 028 120 S04 / K DRILL₩41,070Inquiry
2MFD 029 125 S04Flat Drill2MFD 029 125 S04 / K DRILL₩41,070Inquiry
2MFD 030 129 S06Flat Drill2MFD 030 129 S06 / K DRILL₩49,930Inquiry
2MFD 031 133 S06Flat Drill2MFD 031 133 S06 / K DRILL₩49,930Inquiry
2MFD 032 138 S06Flat Drill2MFD 032 138 S06 / K DRILL₩49,930Inquiry
2MFD 033 142 S06Flat Drill2MFD 033 142 S06 / K DRILL₩49,930Inquiry
