2KNR 040 005 S06
Corner Radius Endmills
List price (excl. VAT)₩38,110
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Catalog specifications
Corner Radius End Mill (for Hardened Steel)2KNR 040 005 S06
Corner-radius end mill for precision profiling of hardened steel (HRC52~60) and heat-treated mold steels.

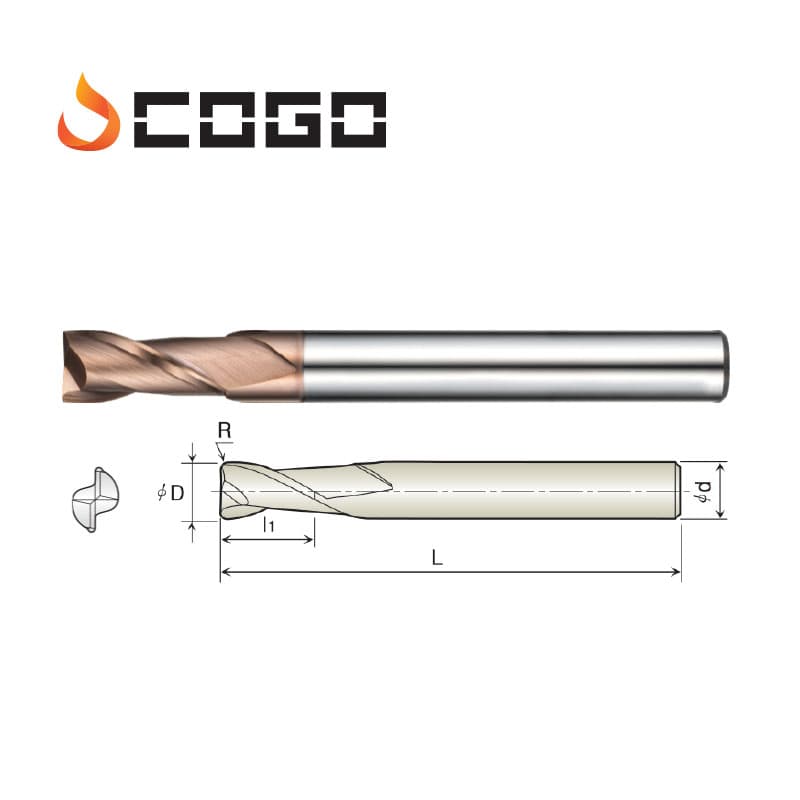

The symbols in the drawing (R·D·l1·l2·L·d) match the spec items below.
| Diameter Cutting-tip diameter (R = corner rounding) | Ø4.0 × R0.5 |
|---|---|
| Length of cut (l1) Length of the actual cutting edge | 10 mm |
| Overall length (L) Total length of the tool | 70 mm |
| Shank dia (φd) Diameter of the shank held by the machine | 6 mm |
| Material | Carbide (tungsten carbide), coated |
| Applications | Best for hardened / mold steels (HRC52–60) |
Material & features
- 2 Flutes2 cutting edges — good chip evacuation for precision/deep cuts
- UWC ultra-fine carbideVery fine, hard carbide — strong on precision & hard materials
- TiSiN coatingSurface coating — heat/wear resistant, longer tool life
- 30° helix30° twisted edge — smoother cutting, better chip flow
- Corner R tol. ±0.005 (0.05R–2.5R)Small corner R (0.05–2.5) held to ±0.005mm — very precise
- Corner R tol. ±0.01 (3R–6R)Large corner R (3–6) held to ±0.01mm
Substitute item (from ERP)
2HCR-040-R05-100-670 · CARBIDE CORNER RADIUS ENDMILLSWhen out of stock, the substitute item's stock can be used.
