All categories · 2KCR 030 003 350
Rib Corner Radius

2KCR 030 003 350

Rib Corner Radius
COGO · Milling Tools > Carbide End Mills > Corner Radius
Spec: 2KCR 030 003 350 / K HARD · Unit EA
List price (excl. VAT)₩52,640
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Log in

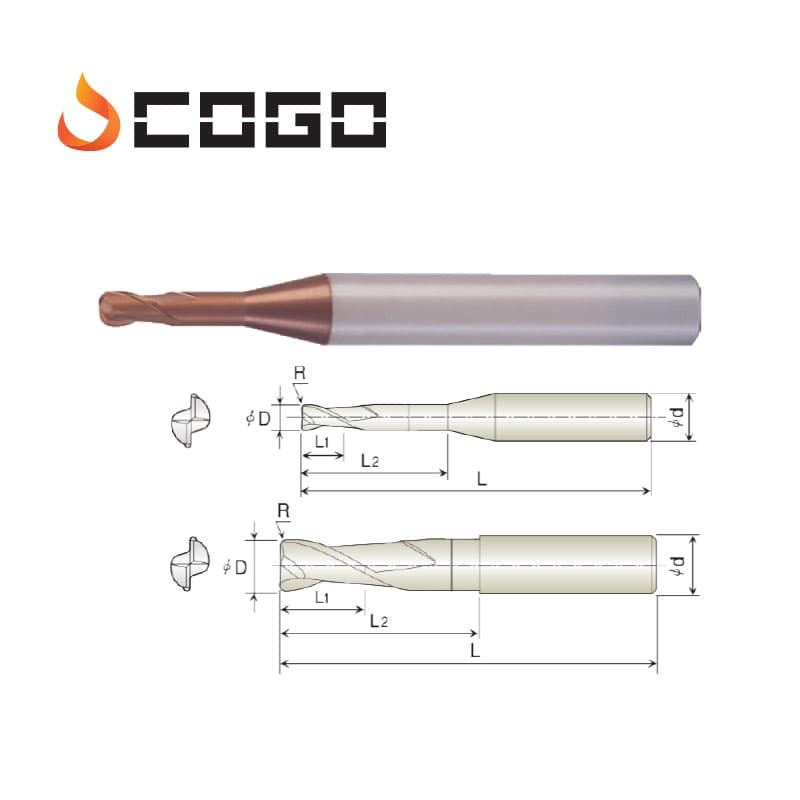

Catalog specifications
2KCR 030 003 350
Diameter
Cutting-tip diameter (R = corner rounding)
Ø3.0 × R0.3
Length of cut (l1)
Length of the actual cutting edge
4.5 mm
Effective length (l2)
Usable reach (necked length)
35 mm
Overall length (L)
Total length of the tool
80 mm
Shank dia (φd)
Diameter of the shank held by the machine
6 mm
Substitute item (from ERP)
2HRR-030-R03-350-680 · CARBIDE RIB CORNER RADIUS ENDMILLS
When out of stock, the substitute item's stock can be used.
Items in the same group (click to switch)
CodeNameSpecList priceStock
2KCR 002 0002 005Rib Corner Radius2KCR 002 0002 005 / K HARD₩47,120Inquiry
2KCR 002 0002 010Rib Corner Radius2KCR 002 0002 010 / K HARD₩47,120Inquiry
2KCR 002 0002 015Rib Corner Radius2KCR 002 0002 015 / K HARD₩47,120Inquiry
2KCR 002 0005 010Rib Corner Radius2KCR 002 0005 010 / K HARD₩47,120Inquiry
2KCR 002 0005 015Rib Corner Radius2KCR 002 0005 015 / K HARD₩47,120Inquiry
2KCR 003 0005 010Rib Corner Radius2KCR 003 0005 010 / K HARD₩41,000Inquiry
2KCR 003 0005 020Rib Corner Radius2KCR 003 0005 020 / K HARD₩41,000Inquiry
2KCR 003 0005 030Rib Corner Radius2KCR 003 0005 030 / K HARD₩41,000Inquiry
2KCR 004 0005 010Rib Corner Radius2KCR 004 0005 010 / K HARD₩37,920Inquiry
2KCR 004 0005 020Rib Corner Radius2KCR 004 0005 020 / K HARD₩37,920Inquiry
2KCR 004 0005 030Rib Corner Radius2KCR 004 0005 030 / K HARD₩37,920Inquiry
2KCR 004 0005 040Rib Corner Radius2KCR 004 0005 040 / K HARD₩37,920Inquiry
2KCR 004 001 010Rib Corner Radius2KCR 004 001 010 / K HARD₩37,920Inquiry
2KCR 004 001 015Rib Corner Radius2KCR 004 001 015 / K HARD₩37,920Inquiry
2KCR 004 001 020Rib Corner Radius2KCR 004 001 020 / K HARD₩37,920Inquiry
2KCR 004 001 030Rib Corner Radius2KCR 004 001 030 / K HARD₩37,920Inquiry
2KCR 004 001 040Rib Corner Radius2KCR 004 001 040 / K HARD₩37,920Inquiry
2KCR 005 0002 010Rib Corner Radius2KCR 005 0002 010 / K HARD₩36,540Inquiry
2KCR 005 0002 015Rib Corner Radius2KCR 005 0002 015 / K HARD₩36,540Inquiry
2KCR 005 0002 020Rib Corner Radius2KCR 005 0002 020 / K HARD₩36,540Inquiry
2KCR 005 0002 025Rib Corner Radius2KCR 005 0002 025 / K HARD₩36,540Inquiry
2KCR 005 0002 030Rib Corner Radius2KCR 005 0002 030 / K HARD₩36,540Inquiry
2KCR 005 0002 040Rib Corner Radius2KCR 005 0002 040 / K HARD₩36,540Inquiry
2KCR 005 0002 050Rib Corner Radius2KCR 005 0002 050 / K HARD₩37,920Inquiry
2KCR 005 0002 060Rib Corner Radius2KCR 005 0002 060 / K HARD₩37,920Inquiry
2KCR 005 0002 080Rib Corner Radius2KCR 005 0002 080 / K HARD₩37,920Inquiry
2KCR 005 0002 100Rib Corner Radius2KCR 005 0002 100 / K HARD₩37,920Inquiry
2KCR 005 0005 010Rib Corner Radius2KCR 005 0005 010 / K HARD₩36,540Inquiry
2KCR 005 0005 015Rib Corner Radius2KCR 005 0005 015 / K HARD₩36,540Inquiry
2KCR 005 0005 020Rib Corner Radius2KCR 005 0005 020 / K HARD₩36,540Inquiry
2KCR 005 0005 025Rib Corner Radius2KCR 005 0005 025 / K HARD₩36,540Inquiry
2KCR 005 0005 030Rib Corner Radius2KCR 005 0005 030 / K HARD₩36,540Inquiry
2KCR 005 0005 040Rib Corner Radius2KCR 005 0005 040 / K HARD₩36,540Inquiry
2KCR 005 0005 050Rib Corner Radius2KCR 005 0005 050 / K HARD₩37,920Inquiry
2KCR 005 0005 060Rib Corner Radius2KCR 005 0005 060 / K HARD₩37,920Inquiry
2KCR 005 0005 080Rib Corner Radius2KCR 005 0005 080 / K HARD₩37,920Inquiry
2KCR 005 0005 100Rib Corner Radius2KCR 005 0005 100 / K HARD₩37,920Inquiry
2KCR 005 001 010Rib Corner Radius2KCR 005 001 010 / K HARD₩36,540Inquiry
2KCR 005 001 015Rib Corner Radius2KCR 005 001 015 / K HARD₩36,540Inquiry
2KCR 005 001 020Rib Corner Radius2KCR 005 001 020 / K HARD₩36,540Inquiry
