2HGB 130 240 S14

Ball Endmills for Generality

COGO · Milling Tools > Carbide End Mills > Ball

Spec: 2HGB 130 240 S14 / K GSERIES · Unit EA

List price (excl. VAT)₩258,100

StockAsk for stock (Log in for live stock)

Log in to see live stock and member prices, and place orders.

Need stock info or a quote? Log in or send a quote request.

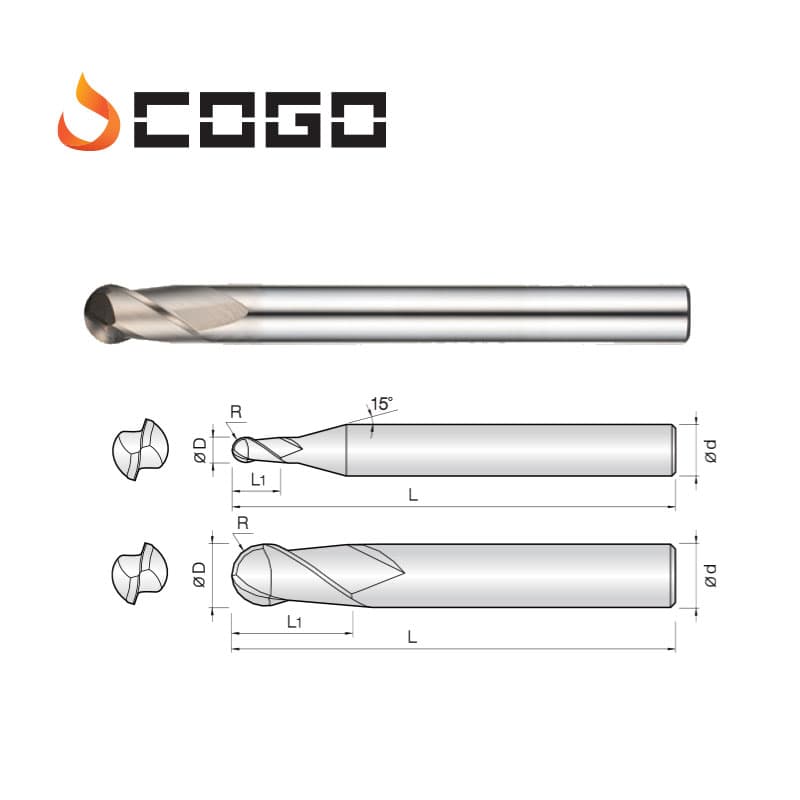

Catalog specifications

2HGB 130 240 S14

Diameter Cutting-tip diameter (R = corner rounding)	Ø6.5
Length of cut (l1) Length of the actual cutting edge	24 mm
Overall length (L) Total length of the tool	110 mm
Shank dia (φd) Diameter of the shank held by the machine	14 mm

Substitute item (from ERP)

2HCBG 130 240 S14 · 표준 길이 볼 엔드밀

When out of stock, the substitute item's stock can be used.

Items in the same group (click to switch)

Code	Name	Spec	List price	Stock
2HGB 001 002 S04	Ball Endmills for Generality	2HGB 001 002 S04 / K GSERIES	₩61,410	Inquiry
2HGB 0015 003 S04	Ball Endmills for Generality	2HGB 0015 003 S04 / K GSERIES	₩57,660	Inquiry
2HGB 002 004 S04	Ball Endmills for Generality	2HGB 002 004 S04 / K GSERIES	₩31,740	Inquiry
2HGB 003 006 S04	Ball Endmills for Generality	2HGB 003 006 S04 / K GSERIES	₩28,910	Inquiry
2HGB 004 008 S04	Ball Endmills for Generality	2HGB 004 008 S04 / K GSERIES	₩27,640	Inquiry
2HGB 005 010 S04	Ball Endmills for Generality	2HGB 005 010 S04 / K GSERIES	₩25,270	Inquiry
2HGB 006 012 S04	Ball Endmills for Generality	2HGB 006 012 S04 / K GSERIES	₩24,210	Inquiry
2HGB 007 015 S04	Ball Endmills for Generality	2HGB 007 015 S04 / K GSERIES	₩24,210	Inquiry
2HGB 008 020 S04	Ball Endmills for Generality	2HGB 008 020 S04 / K GSERIES	₩22,080	Inquiry
2HGB 009 020 S04	Ball Endmills for Generality	2HGB 009 020 S04 / K GSERIES	₩22,080	Inquiry
2HGB 010 025 070	Ball Endmills for Generality	2HGB 010 025 070 / K GSERIES	₩39,330	Inquiry
2HGB 010 025 100	Ball Endmills for Generality	2HGB 010 025 100 / K GSERIES	₩48,870	Inquiry
2HGB 010 025 S04	Ball Endmills for Generality	2HGB 010 025 S04 / K GSERIES	₩21,090	Inquiry
2HGB 010 025 S06	Ball Endmills for Generality	2HGB 010 025 S06 / K GSERIES	₩27,390	Inquiry
2HGB 012 030 S04	Ball Endmills for Generality	2HGB 012 030 S04 / K GSERIES	₩21,960	Inquiry
2HGB 015 040 070	Ball Endmills for Generality	2HGB 015 040 070 / K GSERIES	₩39,330	Inquiry
2HGB 015 040 100	Ball Endmills for Generality	2HGB 015 040 100 / K GSERIES	₩48,870	Inquiry
2HGB 015 040 S04	Ball Endmills for Generality	2HGB 015 040 S04 / K GSERIES	₩21,090	Inquiry
2HGB 015 040 S06	Ball Endmills for Generality	2HGB 015 040 S06 / K GSERIES	₩27,390	Inquiry
2HGB 020 050 075	Ball Endmills for Generality	2HGB 020 050 075 / K GSERIES	₩39,330	Inquiry
2HGB 020 050 100	Ball Endmills for Generality	2HGB 020 050 100 / K GSERIES	₩48,870	Inquiry
2HGB 020 050 S04	Ball Endmills for Generality	2HGB 020 050 S04 / K GSERIES	₩21,090	Inquiry
2HGB 020 050 S06	Ball Endmills for Generality	2HGB 020 050 S06 / K GSERIES	₩27,390	Inquiry
2HGB 025 060 075	Ball Endmills for Generality	2HGB 025 060 075 / K GSERIES	₩39,330	Inquiry
2HGB 025 060 100	Ball Endmills for Generality	2HGB 025 060 100 / K GSERIES	₩48,870	Inquiry
2HGB 025 060 S04	Ball Endmills for Generality	2HGB 025 060 S04 / K GSERIES	₩21,090	Inquiry
2HGB 025 060 S06	Ball Endmills for Generality	2HGB 025 060 S06 / K GSERIES	₩27,690	Inquiry
2HGB 030 080 080	Ball Endmills for Generality	2HGB 030 080 080 / K GSERIES	₩39,950	Inquiry
2HGB 030 080 100	Ball Endmills for Generality	2HGB 030 080 100 / K GSERIES	₩48,870	Inquiry
2HGB 030 080 S03	Ball Endmills for Generality	2HGB 030 080 S03 / K GSERIES	₩21,960	Inquiry
2HGB 030 080 S04	Ball Endmills for Generality	2HGB 030 080 S04 / K GSERIES	₩21,090	Inquiry
2HGB 030 080 S06	Ball Endmills for Generality	2HGB 030 080 S06 / K GSERIES	₩27,690	Inquiry
2HGB 035 080 S06	Ball Endmills for Generality	2HGB 035 080 S06 / K GSERIES	₩30,980	Inquiry
2HGB 040 080 060	Ball Endmills for Generality	2HGB 040 080 060 / K GSERIES	₩22,080	Inquiry
2HGB 040 080 080	Ball Endmills for Generality	2HGB 040 080 080 / K GSERIES	₩26,650	Inquiry
2HGB 040 080 090	Ball Endmills for Generality	2HGB 040 080 090 / K GSERIES	₩42,780	Inquiry
2HGB 040 080 120	Ball Endmills for Generality	2HGB 040 080 120 / K GSERIES	₩54,690	Inquiry
2HGB 040 080 S06	Ball Endmills for Generality	2HGB 040 080 S06 / K GSERIES	₩28,120	Inquiry
2HGB 045 080 S06	Ball Endmills for Generality	2HGB 045 080 S06 / K GSERIES	₩37,070	Inquiry
2HGB 050 080 S05	Ball Endmills for Generality	2HGB 050 080 S05 / K GSERIES	₩31,090	Inquiry
