Diamond Coated Ball Endmills

2DBL 015 050 S04

Diamond Coated Ball Endmills
COGO · Milling Tools > Carbide End Mills > Ball
Spec: 2DBL 015 050 S04 / K GRAPHITE · Unit EA
List price (excl. VAT)Ask for price
No list price is registered for this item. Request a quote and our team will provide the price.
StockAsk for stock
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Log in

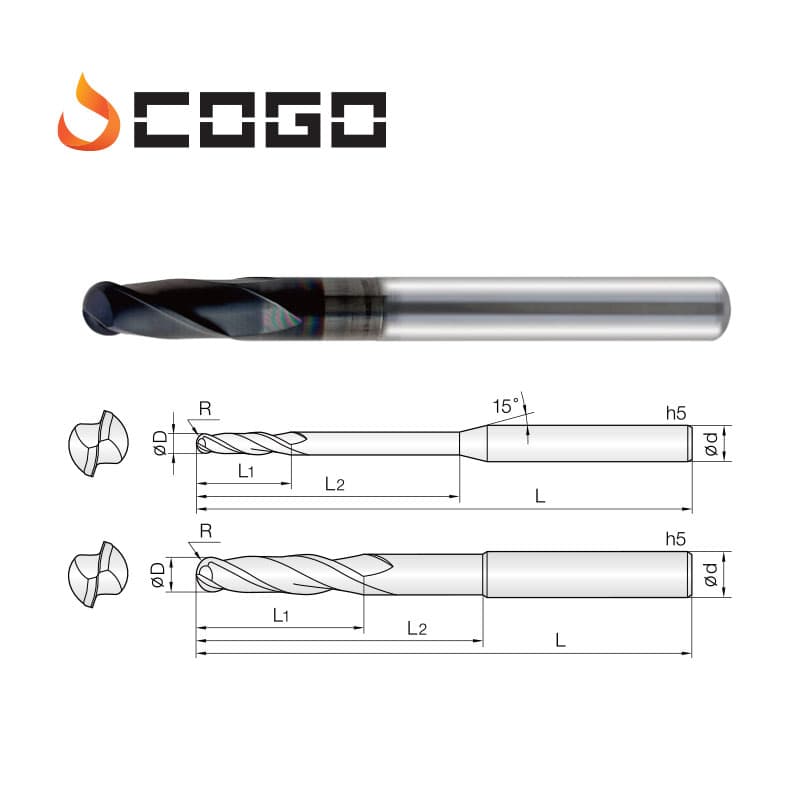

Catalog specifications
2DBL 015 050 S04
Diameter
Cutting-tip diameter (R = corner rounding)
Ø0.75
Length of cut (l1)
Length of the actual cutting edge
4.5 mm
Effective length (l2)
Usable reach (necked length)
5 mm
Overall length (L)
Total length of the tool
60 mm
Shank dia (φd)
Diameter of the shank held by the machine
4 mm
Substitute item (from ERP)
2DBE 015 050 S04 · 다이아몬드 코팅 볼 엔드밀
When out of stock, the substitute item's stock can be used.
Items in the same group (click to switch)
CodeNameSpecList priceStock
2DBL 002 010 S04Diamond Coated Ball Endmills2DBL 002 010 S04 / K GRAPHITE₩72,560Inquiry
2DBL 003 012 S04Diamond Coated Ball Endmills2DBL 003 012 S04 / K GRAPHITE₩68,790Inquiry
2DBL 003 020 S04Diamond Coated Ball Endmills2DBL 003 020 S04 / K GRAPHITE₩73,180Inquiry
2DBL 004 015 S04Diamond Coated Ball Endmills2DBL 004 015 S04 / K GRAPHITE₩64,230Inquiry
2DBL 004 020 S04Diamond Coated Ball Endmills2DBL 004 020 S04 / K GRAPHITE₩68,790Inquiry
2DBL 004 030 S04Diamond Coated Ball Endmills2DBL 004 030 S04 / K GRAPHITE₩68,790Inquiry
2DBL 004 040 S04Diamond Coated Ball Endmills2DBL 004 040 S04 / K GRAPHITE₩73,180Inquiry
2DBL 004 050 S04Diamond Coated Ball Endmills2DBL 004 050 S04 / K GRAPHITE₩73,180Inquiry
2DBL 004 080 S04Diamond Coated Ball Endmills2DBL 004 080 S04 / K GRAPHITE₩79,280Inquiry
2DBL 004 100 S04Diamond Coated Ball Endmills2DBL 004 100 S04 / K GRAPHITE₩81,920Inquiry
2DBL 005 020 S04Diamond Coated Ball Endmills2DBL 005 020 S04 / K GRAPHITE₩63,570Inquiry
2DBL 005 025 S04Diamond Coated Ball Endmills2DBL 005 025 S04 / K GRAPHITEAsk for priceInquiry
2DBL 005 030 S04Diamond Coated Ball Endmills2DBL 005 030 S04 / K GRAPHITE₩64,600Inquiry
2DBL 005 040 S04Diamond Coated Ball Endmills2DBL 005 040 S04 / K GRAPHITE₩64,600Inquiry
2DBL 005 050 S04Diamond Coated Ball Endmills2DBL 005 050 S04 / K GRAPHITE₩64,600Inquiry
2DBL 005 060 S04Diamond Coated Ball Endmills2DBL 005 060 S04 / K GRAPHITE₩69,160Inquiry
2DBL 005 080 S04Diamond Coated Ball Endmills2DBL 005 080 S04 / K GRAPHITE₩69,160Inquiry
2DBL 005 100 S04Diamond Coated Ball Endmills2DBL 005 100 S04 / K GRAPHITE₩72,420Inquiry
2DBL 005 120 S04Diamond Coated Ball Endmills2DBL 005 120 S04 / K GRAPHITE₩75,110Inquiry
2DBL 006 020 S04Diamond Coated Ball Endmills2DBL 006 020 S04 / K GRAPHITE₩62,190Inquiry
2DBL 006 030 S04Diamond Coated Ball Endmills2DBL 006 030 S04 / K GRAPHITE₩63,060Inquiry
2DBL 006 040 S04Diamond Coated Ball Endmills2DBL 006 040 S04 / K GRAPHITE₩63,060Inquiry
2DBL 006 050 S04Diamond Coated Ball Endmills2DBL 006 050 S04 / K GRAPHITE₩63,060Inquiry
2DBL 006 060 S04Diamond Coated Ball Endmills2DBL 006 060 S04 / K GRAPHITE₩63,060Inquiry
2DBL 006 080 S04Diamond Coated Ball Endmills2DBL 006 080 S04 / K GRAPHITE₩63,060Inquiry
2DBL 006 100 S04Diamond Coated Ball Endmills2DBL 006 100 S04 / K GRAPHITE₩63,060Inquiry
2DBL 006 120 S04Diamond Coated Ball Endmills2DBL 006 120 S04 / K GRAPHITE₩67,640Inquiry
2DBL 006 150 S04Diamond Coated Ball Endmills2DBL 006 150 S04 / K GRAPHITE₩72,420Inquiry
2DBL 006 200 S04Diamond Coated Ball Endmills2DBL 006 200 S04 / K GRAPHITE₩75,110Inquiry
2DBL 008 030 S04Diamond Coated Ball Endmills2DBL 008 030 S04 / K GRAPHITE₩60,830Inquiry
2DBL 008 040 S04Diamond Coated Ball Endmills2DBL 008 040 S04 / K GRAPHITE₩63,710Inquiry
2DBL 008 050 S04Diamond Coated Ball Endmills2DBL 008 050 S04 / K GRAPHITE₩63,710Inquiry
2DBL 008 060 S04Diamond Coated Ball Endmills2DBL 008 060 S04 / K GRAPHITE₩63,710Inquiry
2DBL 008 080 S04Diamond Coated Ball Endmills2DBL 008 080 S04 / K GRAPHITE₩63,710Inquiry
2DBL 008 100 S04Diamond Coated Ball Endmills2DBL 008 100 S04 / K GRAPHITE₩63,710Inquiry
2DBL 008 150 S04Diamond Coated Ball Endmills2DBL 008 150 S04 / K GRAPHITE₩63,710Inquiry
2DBL 008 200 S04Diamond Coated Ball Endmills2DBL 008 200 S04 / K GRAPHITE₩63,710Inquiry
2DBL 010 030 S04Diamond Coated Ball Endmills2DBL 010 030 S04 / K GRAPHITE₩48,180Inquiry
2DBL 010 040 S04Diamond Coated Ball Endmills2DBL 010 040 S04 / K GRAPHITE₩50,570Inquiry
2DBL 010 050 S04Diamond Coated Ball Endmills2DBL 010 050 S04 / K GRAPHITE₩50,570Inquiry
