All categories · 2BCB 040 080 S04
2BCB 040 080 S04
Standard Ball
List price (excl. VAT)₩34,700
Log in to see member price
StockAsk for stock (Log in for live stock)
Log in to see live stock and member prices, and place orders.
Need stock info or a quote? Log in or send a quote request.
Catalog specifications
2BCB 040 080 S04

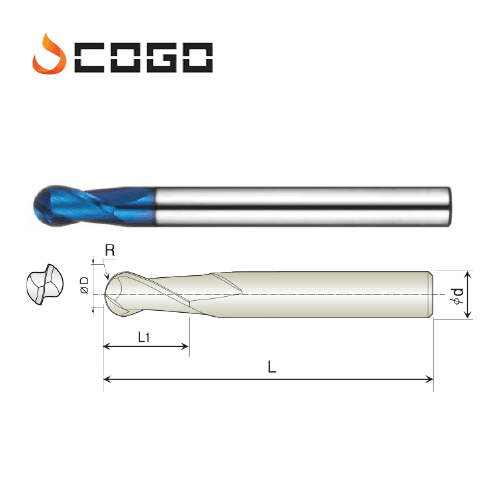

| Diameter Cutting-tip diameter (R = corner rounding) | Ø4.0 × R2.0 |
|---|---|
| Length of cut (l1) Length of the actual cutting edge | 8 mm |
| Overall length (L) Total length of the tool | 80 mm |
| Shank dia (φd) Diameter of the shank held by the machine | 4 mm |
Substitute item (from ERP)
2RPB-040-080-480 · 2날 초경 볼 엔드밀When out of stock, the substitute item's stock can be used.
Items in the same group (click to switch)
| Code | Name | Spec | List price | Stock |
|---|---|---|---|---|
| 2BCB 001 002 S04 | Standard Ball | 2BCB 001 002 S04 / B HARD | ₩76,930 | Inquiry |
| 2BCB 002 004 S04 | Standard Ball | 2BCB 002 004 S04 / B HARD | ₩47,170 | Inquiry |
| 2BCB 003 006 S04 | Standard Ball | 2BCB 003 006 S04 / B HARD | ₩42,410 | Inquiry |
| 2BCB 004 008 S04 | Standard Ball | 2BCB 004 008 S04 / B HARD | ₩40,770 | Inquiry |
| 2BCB 005 010 S04 | Standard Ball | 2BCB 005 010 S04 / B HARD | ₩37,050 | Inquiry |
| 2BCB 006 012 S04 | Standard Ball | 2BCB 006 012 S04 / B HARD | ₩33,480 | Inquiry |
| 2BCB 007 015 S04 | Standard Ball | 2BCB 007 015 S04 / B HARD | ₩33,480 | Inquiry |
| 2BCB 008 015 S04 | Standard Ball | 2BCB 008 015 S04 / B HARD | ₩30,590 | Inquiry |
| 2BCB 010 020 S04 | Standard Ball | 2BCB 010 020 S04 / B HARD | ₩29,090 | Inquiry |
| 2BCB 010 020 S06 | Standard Ball | 2BCB 010 020 S06 / B HARD | ₩37,720 | Inquiry |
| 2BCB 012 025 S04 | Standard Ball | 2BCB 012 025 S04 / B HARD | ₩29,090 | Inquiry |
| 2BCB 015 040 S04 | Standard Ball | 2BCB 015 040 S04 / B HARD | ₩29,090 | Inquiry |
| 2BCB 015 040 S06 | Standard Ball | 2BCB 015 040 S06 / B HARD | ₩37,720 | Inquiry |
| 2BCB 020 050 S04 | Standard Ball | 2BCB 020 050 S04 / B HARD | ₩29,090 | Inquiry |
| 2BCB 020 050 S06 | Standard Ball | 2BCB 020 050 S06 / B HARD | ₩37,720 | Inquiry |
| 2BCB 025 060 S06 | Standard Ball | 2BCB 025 060 S06 / B HARD | ₩38,220 | Inquiry |
| 2BCB 030 080 S03 | Standard Ball | 2BCB 030 080 S03 / B HARD | ₩29,090 | Inquiry |
| 2BCB 030 080 S04 | Standard Ball | 2BCB 030 080 S04 / B HARD | ₩29,090 | Inquiry |
| 2BCB 030 080 S06 | Standard Ball | 2BCB 030 080 S06 / B HARD | ₩50,780 | Inquiry |
| 2BCB 035 080 S06 | Standard Ball | 2BCB 035 080 S06 / B HARD | ₩39,160 | Inquiry |
| 2BCB 040 080 060 | Standard Ball | 2BCB 040 080 060 / B HARD | ₩30,690 | Inquiry |
| 2BCB 040 080 S04 | Standard Ball | 2BCB 040 080 S04 / B HARD | ₩34,700 | Inquiry |
| 2BCB 040 080 S06 | Standard Ball | 2BCB 040 080 S06 / B HARD | ₩39,810 | Inquiry |
| 2BCB 045 100 S06 | Standard Ball | 2BCB 045 100 S06 / B HARD | ₩46,920 | Inquiry |
| 2BCB 050 100 S06 | Standard Ball | 2BCB 050 100 S06 / B HARD | ₩44,020 | Inquiry |
| 2BCB 055 120 S06 | Standard Ball | 2BCB 055 120 S06 / B HARD | ₩50,960 | Inquiry |
| 2BCB 060 120 075 | Standard Ball | 2BCB 060 120 075 / B HARD | ₩37,400 | Inquiry |
| 2BCB 060 120 090 | Standard Ball | 2BCB 060 120 090 / B HARD | ₩45,950 | Inquiry |
| 2BCB 070 140 S08 | Standard Ball | 2BCB 070 140 S08 / B HARD | ₩91,560 | Inquiry |
| 2BCB 080 140 075 | Standard Ball | 2BCB 080 140 075 / B HARD | ₩67,470 | Inquiry |
| 2BCB 080 140 100 | Standard Ball | 2BCB 080 140 100 / B HARD | ₩91,560 | Inquiry |
| 2BCB 090 180 S10 | Standard Ball | 2BCB 090 180 S10 / B HARD | ₩127,670 | Inquiry |
| 2BCB 100 180 075 | Standard Ball | 2BCB 100 180 075 / B HARD | ₩88,350 | Inquiry |
| 2BCB 100 180 100 | Standard Ball | 2BCB 100 180 100 / B HARD | ₩122,950 | Inquiry |
| 2BCB 120 220 080 | Standard Ball | 2BCB 120 220 080 / B HARD | ₩115,600 | Inquiry |
| 2BCB 120 220 110 | Standard Ball | 2BCB 120 220 110 / B HARD | ₩178,380 | Inquiry |
